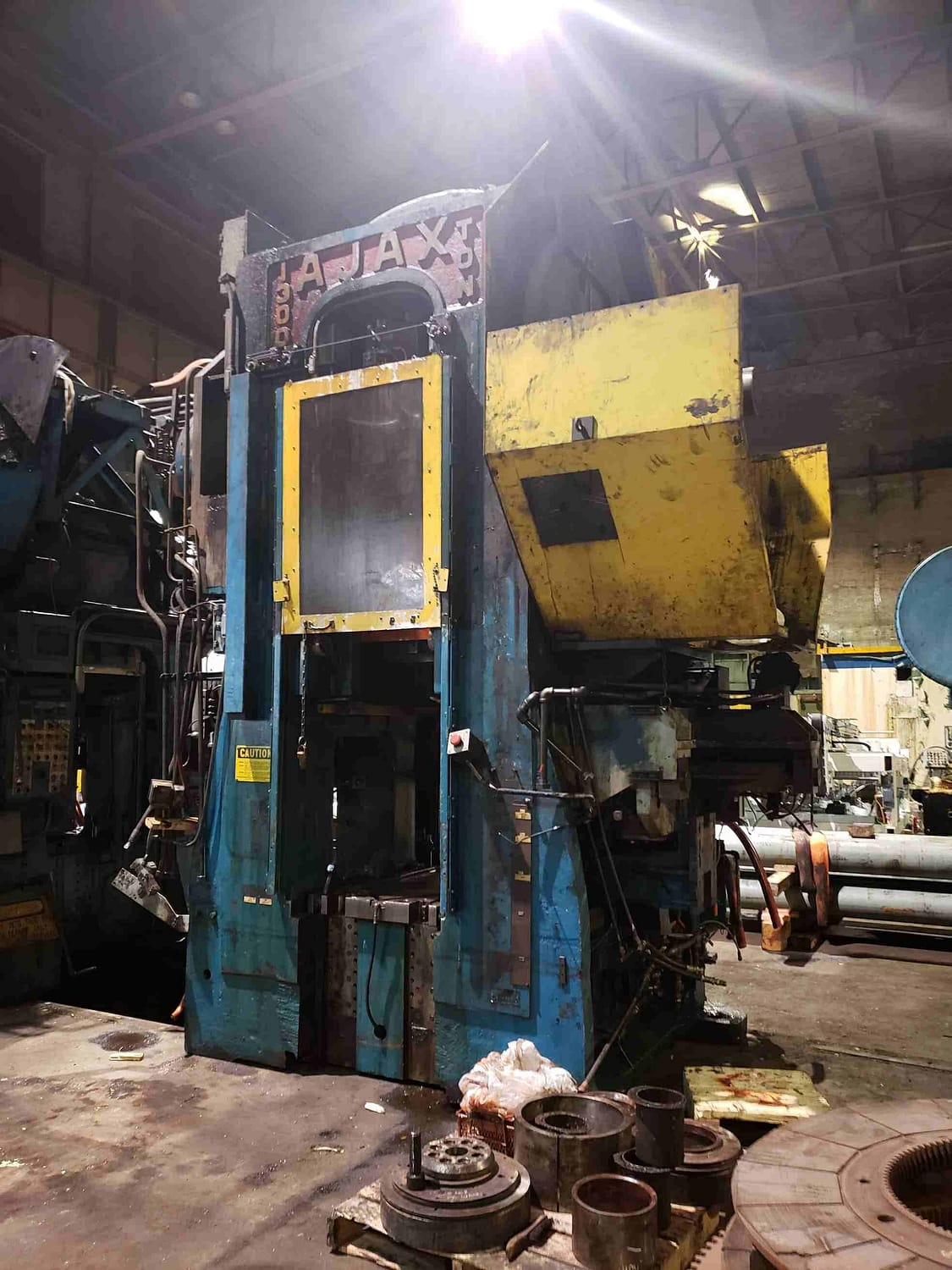

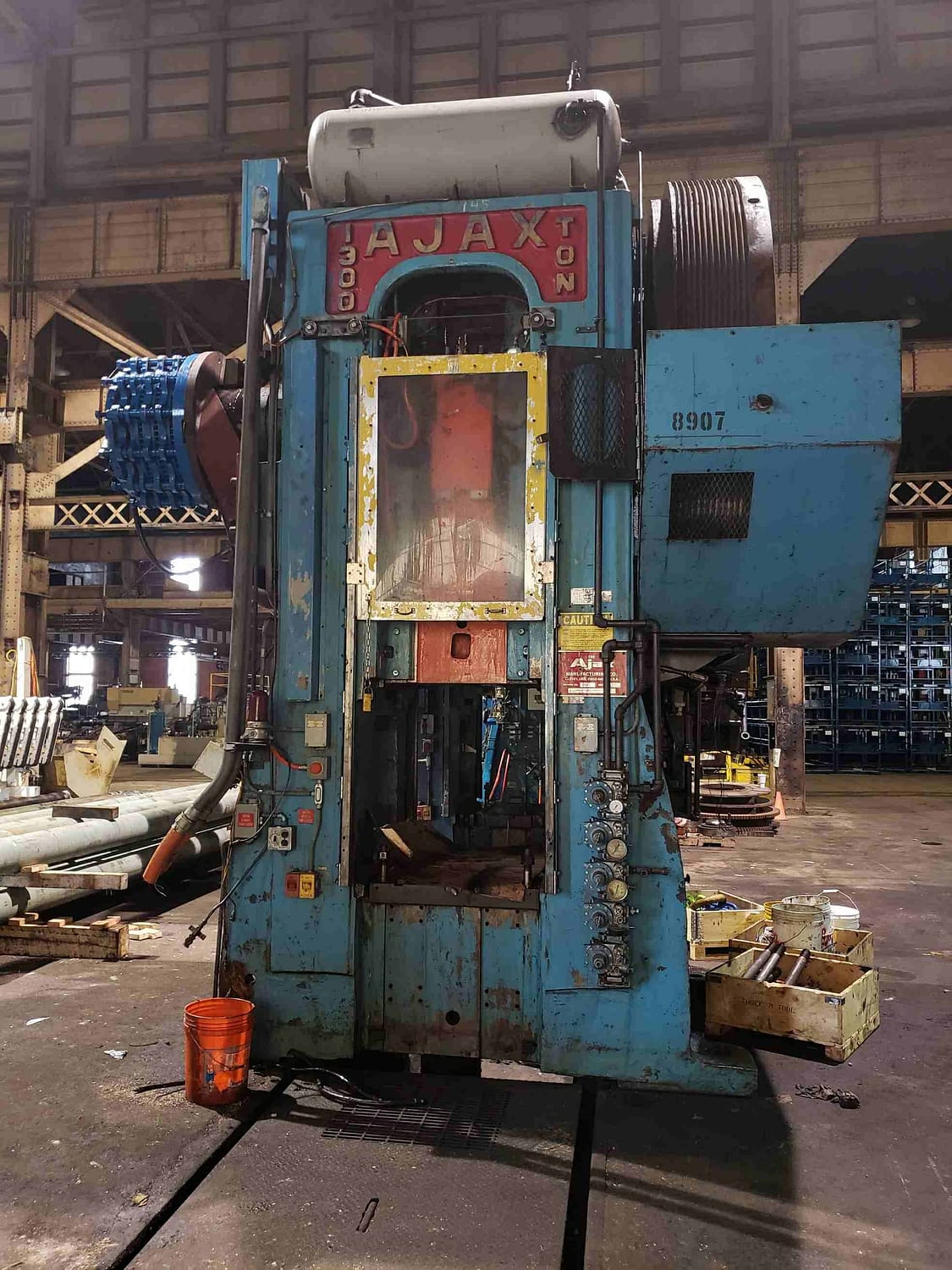

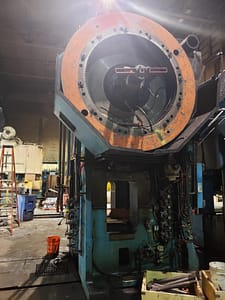

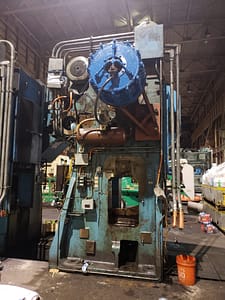

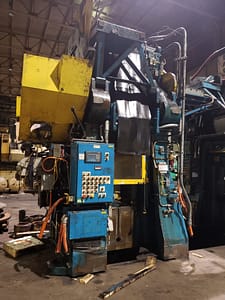

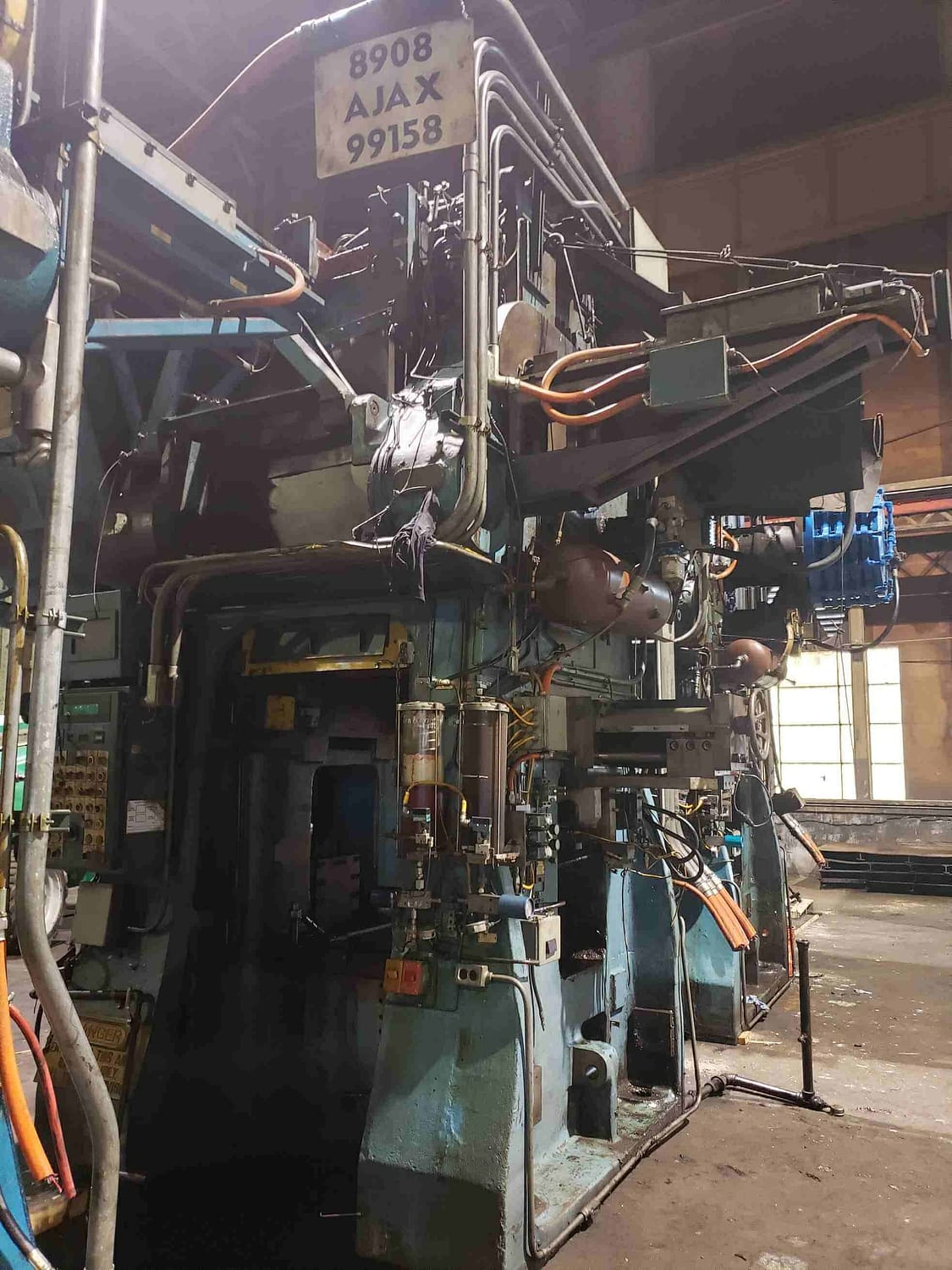

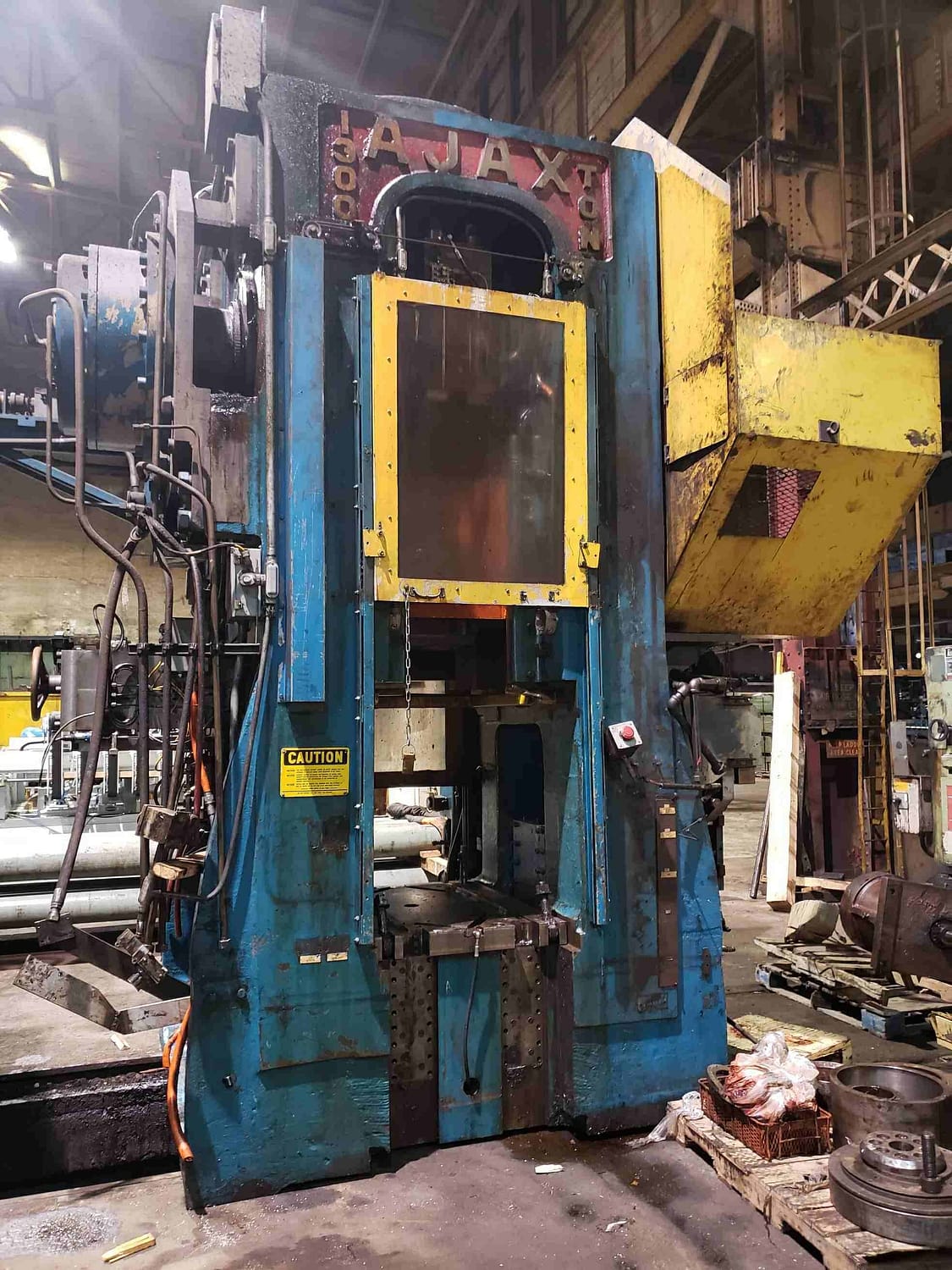

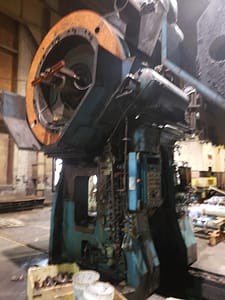

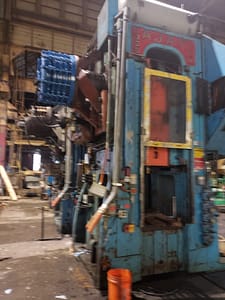

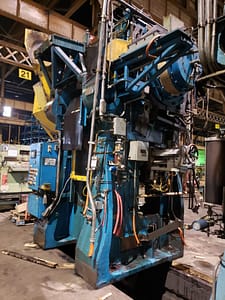

1,300 Metric Ton Capacity Ajax Forging Presses For Sale
- 3 Available
- 1433 US Ton Capacity
- Years: 1986, 1987, 1996
- Prices:
- 1986: $225,000.00
- 1987: $600,000.00
- 1996: $750,000.00
- Specs from Ajax Brochure:
- Stroke: 10″ (250mm)
- Ram Face L-R 31″ (780mm)
- Ram Face F-B 31″ (780mm)
- To Knockout Stroke: 1.25″ (32mm)
- Ram To Table: 30″ (762mm)
- Nominal Mechanical Stroke: 1.625″ (41mm)
- Table To Floor: 30″ (750mm)
- Die Seat: L-R: 32″ (820mm)
- Die Seat: F-B: 33″ (850mm)
- Width Between Columns L-R: 37.5″ (953mm)
- Side Window Width: 22″ (558.8mm)
- Floor Space L-R: 134″ (3404mm)
- Floor Space F-B: 112″ (2845mm)
- Height Above Floor: 192″ (4877mm)
- Motor: 75hp (55.9kw)
- Motor RPM: 900/1200
- Gross Weight: 148,000lbs (67,273kg)
- Air Consumption Per Stroke: .85 cu. ft. (.0241 cu. m.)
