440 Ton Capacity Aida Straight Side Link Motion Press For Sale

Posted on by

440 Ton Aida Straight Side Link Motion Metal Stamping Press

  • Capacity: 440 US Tons (400 KN) at 0.25″
  • Model: PMX-L2-4000(1)-225-160
  • Year: 2002
  • Stroke: 12″
  • Slide Adjustment: 6″
  • Speed: 25 to 60 SPM
  • Micro Inching: 10 SPM
  • Shut Height: 43″
  • Bed Area: 108.26″ x 55″
  • Slide Area: 108.26″ x 55″
  • Bolster Thickness: 10.62″
  • Overall Height: 257.87″
  • Window Size: 53.53″ Wide
  • Total Weight: 97 Tons



Mori Seiki SH50 Horizontal Mill For Sale

Posted on by

Mori Seiki SH50 Horizontal Mill

Features:

  • 12000 RPM Spindle
  • MSC-516 ( Fanuc ) Control
  • 1 Degree Index Dual Pallet Changer
  • 40 Tools Side Mount Tool Changer
  • Expanded Program Memory
  • Helical Interpolation
  • Rigid Tapping
  • Advanced Tool Management
  • Coolant Tank
  • Telescopic way covers
  • Chip Conveyor
  • RS-232
  • High Pressure Coolant system

Specifications:

Travels:

  • X-Axis: 24.8″
  • Y-Axis: 23.6″
  • Z-Axis: 25.6″
  • Rapid Traverse Rates: 1259 Inch Per Minute
  • Cutting Feed Rates: 710 Inch Per Minute
  • Table Surface to Spindle Center: 2.0″ – 25.6″

Pallet:

  • Dual Pallet Changer
  • Pallet Size: 19.75″ X 19.75″
  • Pallet Change Time: 6 Seconds
  • Weight on Table: 2200 lbs

Spindle:

  • Taper Size: CAT 40
  • Speed Range: 0 – 12000 RPM
  • Spindle Power: 30 HP
  • Max Torque: 90ft-lb @ 2000RPM

Automatic Tool Changer:

  • Capacity: 40 + 1
  • Max Tool Weight: 22 lbs
  • Max Tool Dia: 6″
  • Max Tool Length: 16″
  • Tool Changing Time: 1.3 – 3.7 Seconds

General:

  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 3-Phase
  • Overall Shipping Dimensions: 178″ x 110″ x 130″ High
  • Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
  • Weight: 28,000 lbs

30,000 lb Capacity Cat Forklift For Sale

Posted on by

30,000 lb Capacity Cat Forklift For Sale

  • Model: T300
  • Capacity: 30,000 lbs
  • Year: 1970’s
  • Fuel: Propane
  • Forks: 6′ Long
  • Tires: Cushion
  • Overall Dimensions: 7′ 8″ Tall x 5′ 2″ Wide x 12′ Long (without forks)
  • Approx. Weight of Forklift: 32,000 lbs
  • Approx. Weight of Boom/Stand: 3,000 lbs
  • Runs Good
  • Equipped With:

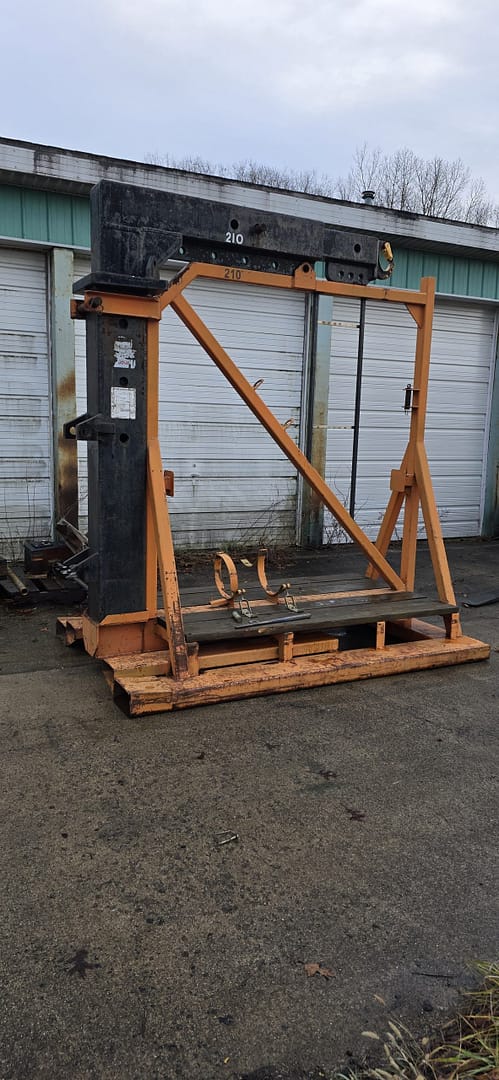

    • Boom/Stand
    • Forks

400 Ton Capacity Heim Straight Side Press For Sale

Posted on by

400 Ton Capacity Heim Straight Side Press

  • Model: S2-400-100-48
  • Stroke: 12″
  • Shut Height: 12″
  • Slide Adjustment: 12″
  • Speed: 20 – 40 SPM (Variable)
  • Bed Area: 100″ x 48″
  • Ram Area: 100″ x 48″
  • Includes:
    • T-Slotted Bolster (Approx. 6″ Thick)
    • Windows in Uprights
    • Tie Rod Construction
    • Fabricated Steel Frame
    • Air Clutch & Brake
    • Air Counter Balances
    • Hydraulic Overload Protection
    • Light Curtains
    • Imco Tonnage Motor
    • Motor & Controls
