Mori Seiki SH50 Horizontal Mill For Sale

Mori Seiki SH50 Horizontal Mill

Features:

  • 12000 RPM Spindle
  • MSC-516 ( Fanuc ) Control
  • 1 Degree Index Dual Pallet Changer
  • 40 Tools Side Mount Tool Changer
  • Expanded Program Memory
  • Helical Interpolation
  • Rigid Tapping
  • Advanced Tool Management
  • Coolant Tank
  • Telescopic way covers
  • Chip Conveyor
  • RS-232
  • High Pressure Coolant system

Specifications:

Travels:

  • X-Axis: 24.8″
  • Y-Axis: 23.6″
  • Z-Axis: 25.6″
  • Rapid Traverse Rates: 1259 Inch Per Minute
  • Cutting Feed Rates: 710 Inch Per Minute
  • Table Surface to Spindle Center: 2.0″ – 25.6″

Pallet:

  • Dual Pallet Changer
  • Pallet Size: 19.75″ X 19.75″
  • Pallet Change Time: 6 Seconds
  • Weight on Table: 2200 lbs

Spindle:

  • Taper Size: CAT 40
  • Speed Range: 0 – 12000 RPM
  • Spindle Power: 30 HP
  • Max Torque: 90ft-lb @ 2000RPM

Automatic Tool Changer:

  • Capacity: 40 + 1
  • Max Tool Weight: 22 lbs
  • Max Tool Dia: 6″
  • Max Tool Length: 16″
  • Tool Changing Time: 1.3 – 3.7 Seconds

General:

  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 3-Phase
  • Overall Shipping Dimensions: 178″ x 110″ x 130″ High
  • Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
  • Weight: 28,000 lbs

Mazak FH880 Horizontal CNC Mill For Sale

Mazak CNC Horizontal Machining Center – Mill For Sale – Two Machines Available

  • Model: FH880
  • Year: 1998
  • X-Axis Travels 51.8″
  • Y-Axis Travels 43.3″
  • Z-Axis Travels 39.37″
  • Pallet Size 31.5″ x 31.5″
  • Pallet Indexing (B-Axis) 1 Degree
  • Pallet Load Capacity 4,850 Lbs
  • Spindle Speed 7,000 RPM
  • Spindle Taper CAT 50
  • Spindle Motor 40 HP
  • Approx. Machine Weight 55,000 Lbs

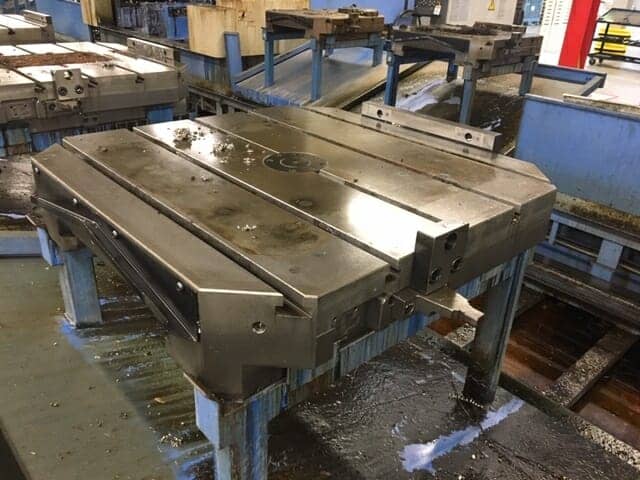

There are many pallets with this machine. No tooling, tombstones or fixtures are included.

Mazak FH880 Horizontal CNC Mill For SaleMazak FH880 Horizontal CNC Mill For SaleMazak FH880 Horizontal CNC Mill For SaleMazak FH880 Horizontal CNC Mill For Sale

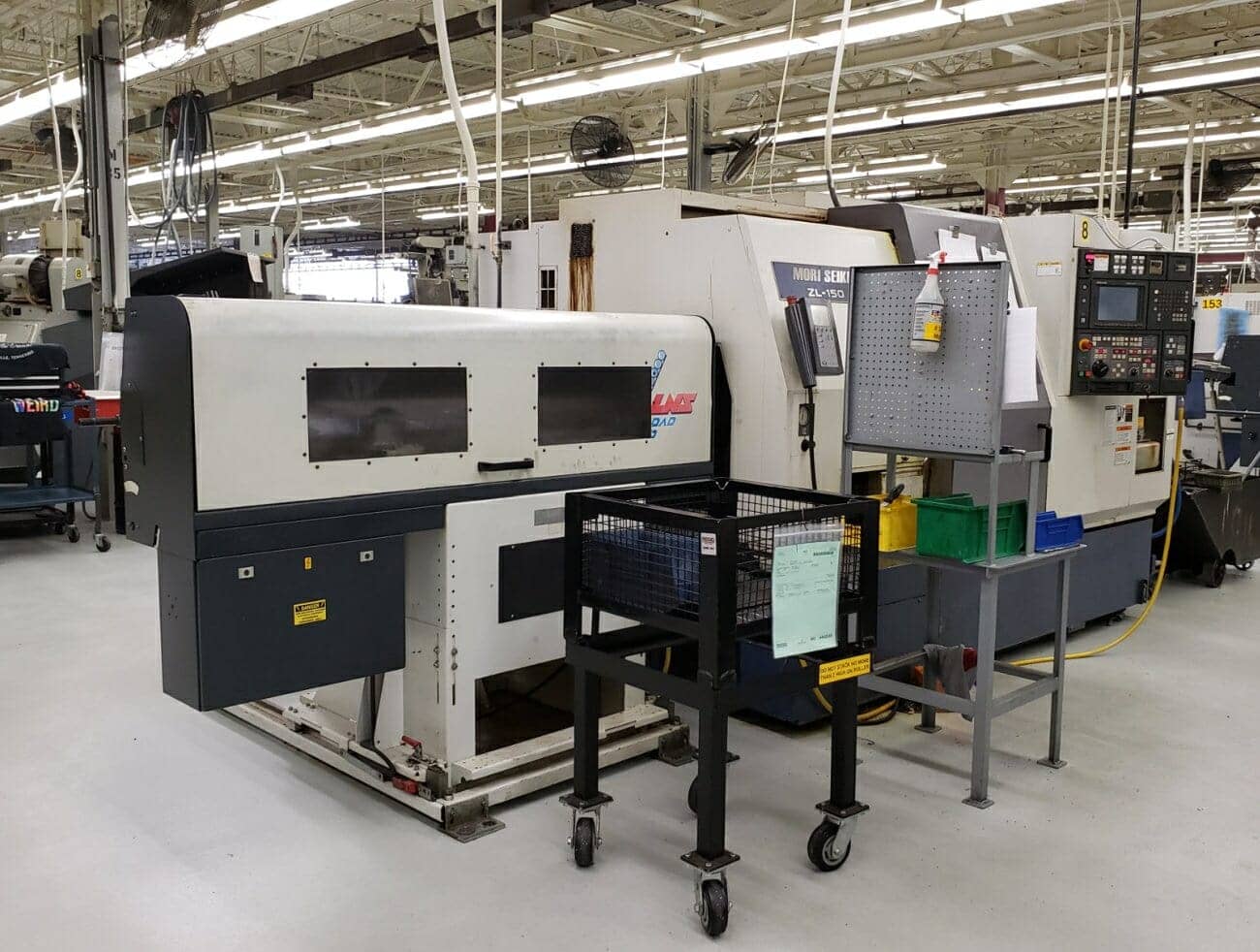

1999 Mori Seiki ZL-150MC CNC Lathe Turning Center For Sale

Used Mori Seiki ZL-150MC CNC Lathe Turning Center For Sale

  • Year: 1999
  • Model: ZL-150MC
  • Spindle Speed: 60-5,000 rpm
  • Chuck Diameters: 200 mm ( 160mm)
  • Travel Axis X: 235 (195+40) mm
  • Travel Axis Z: 500 mm
  • Max. Diameter:  440 mm
  • Spindle hole: 56 mm
  • Hole bar diameter: 46 mm
  • Turrets: 2
  • Rapid: 30 mt /min
  • Automatic Tailstock
  • Number of tools: 12 + 12 (Dual Turrents)
  • Axis C – Live Tool Drive: Yes
  • Time change tools: 0.7 sec
  • Power kW: 22 KW
  • Machine Weight: 6,500 Kg (14,330lbs not including bar feeder)
  • Machine Sizes: ( L x L x H) 1,900mm x 1,500mm x 1,700mm (75″ x 60″ x 67″) not including bar feed dimensions

All information is subject to inspection.

No tooling is included with the machines.

Mori Seiki ZL150 CNC Lathe For SaleMori Seiki ZL150 CNC Lathe For SaleMori Seiki ZL150 CNC Lathe For Sale

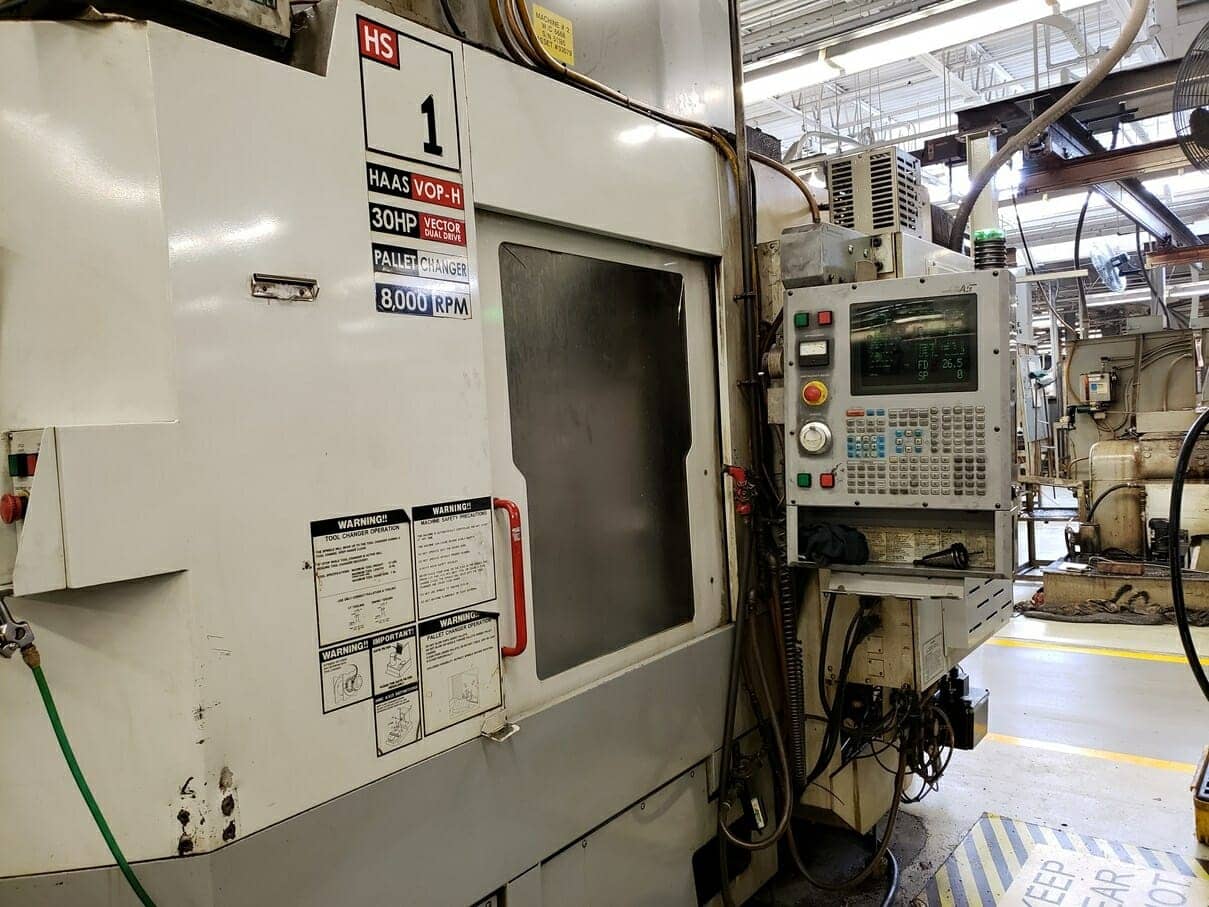

Haas 5 Axis HS-1RP Horizontal CNC Mill For Sale

Haas 5 Axis HS-1RP Horizontal CNC Mill For Sale

Specifications for Haas HS1-RP

  • Year: 2002
  • Overall dimensions: 112″ tall x 12′ long x 92″ wide
  • X Axis Travel 24″
  • Y Axis Travel 20″
  • Z Axis Travel 22″
  • Table Size 15.75″ x 2 Pallets
  • Spindle Motor 30 HP
  • Speed 8,000 RPM
  • Spindle Taper CAT40
  • Tool Changer 24 ATC
  • Weight: 20,000lbs
  • 11,600 hours approximate motion time and 8,600 approximate spindle run time

Equipped with:

  • Dual HRT-310M Rotary Tables Available For Sale
  • Haas Control
  • Pallet Changer
  • 5 Axis
  • 16MB Memory
  • Macros
  • Rotational Scaling
  • Rigid Tapping
  • Chip Auger

  • Haas HS1 Horizontal Mill For SaleHaas HS1 Horizontal Mill For SaleHaas HS1 Horizontal Mill For Sale Haas HS1 Horizontal Mill For Sale
