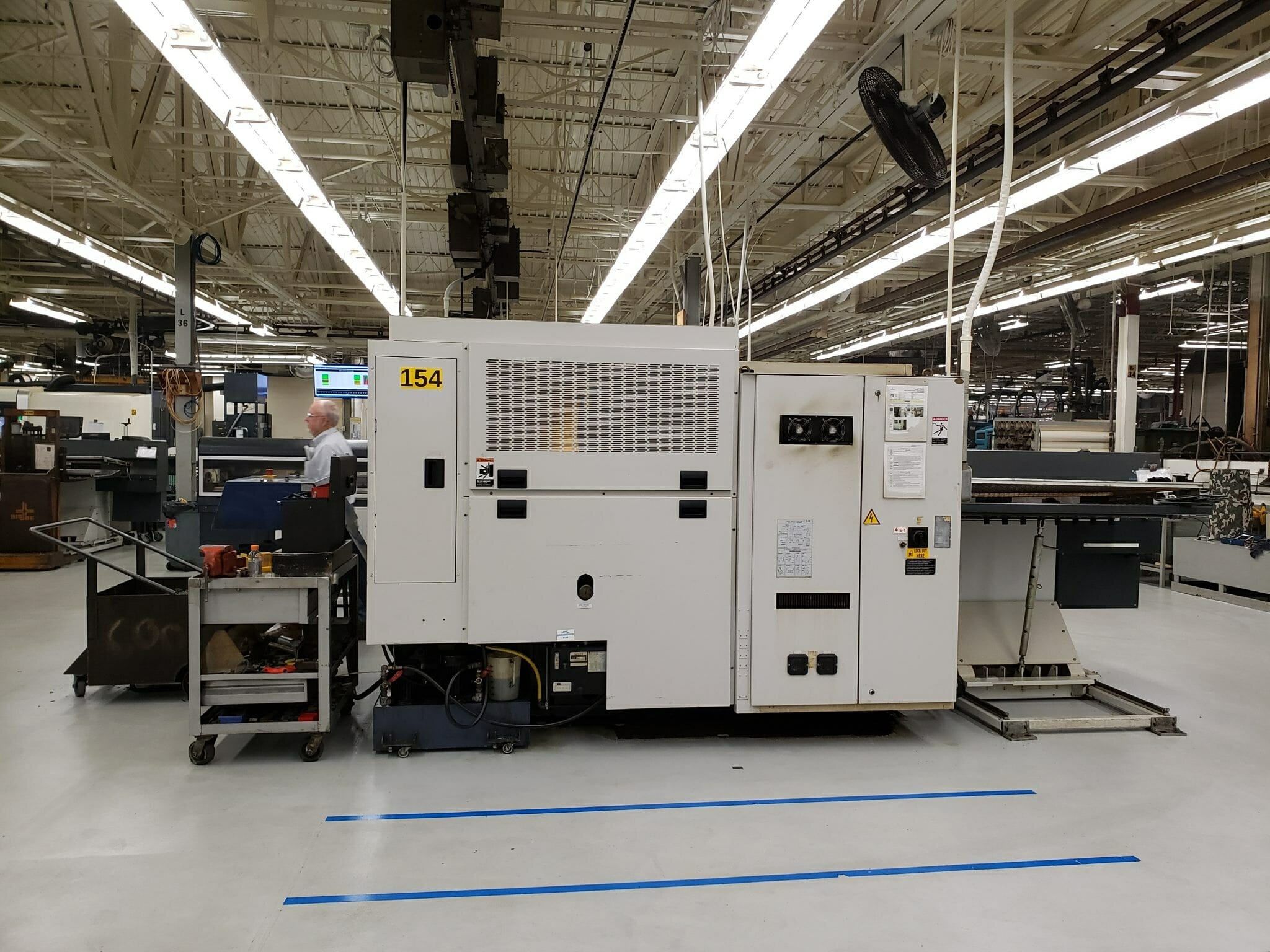

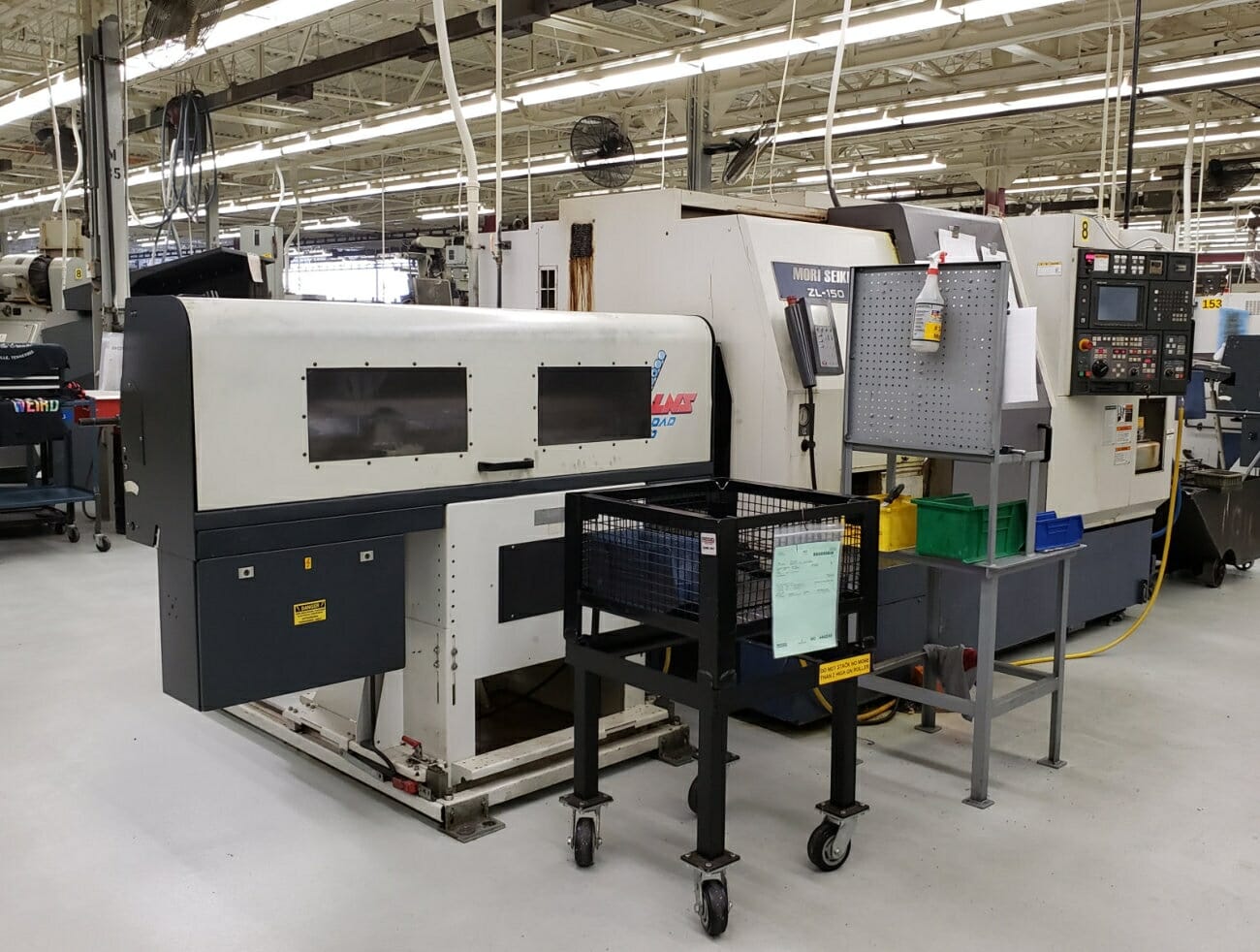

Used Mori Seiki ZL-150MC CNC Lathe Turning Center For Sale

Year: 1999
Model: ZL-150MC
Spindle Speed: 60-5,000 rpm
Chuck Diameters: 200 mm ( 160mm)
Travel Axis X: 235 (195+40) mm
Travel Axis Z: 500 mm
Max. Diameter: 440 mm
Spindle hole: 56 mm
Hole bar diameter: 46 mm
Turrets: 2
Rapid: 30 mt /min
Automatic Tailstock
Number of tools: 12 + 12 (Dual Turrents)
Axis C – Live Tool Drive: Yes
Time change tools: 0.7 sec
Power kW: 22 KW
Machine Weight: 6,500 Kg (14,330lbs not including bar feeder)
Machine Sizes: ( L x L x H) 1,900mm x 1,500mm x 1,700mm (75″ x 60″ x 67″) not including bar feed dimensions

All information is subject to inspection.

No tooling is included with the machines.
