200 Ton Metric Manzoni Stamping Press with Feedline For Sale

Used 2003 Manzoni T200 2MR-SL 200 metric ton (220 ton) stamping press with link drive for deep drawing capability For Sale

  • Paid $800K new in 2003
  • Serial number 5211
  • 1600×1000 mm bolster
  • 50-150 SPM
  • 75 mm Stroke Length
  • 125 mm Bed Adjustment
  • 1100 mm table height
  • Fr. Opening btw, upright of 1700 mm
  • L Opening btwn. upright of 800 mm
  • 45 kw main motor
  • Machine weight approx 27000 Kg
  • Siemens controls
  • Left to right

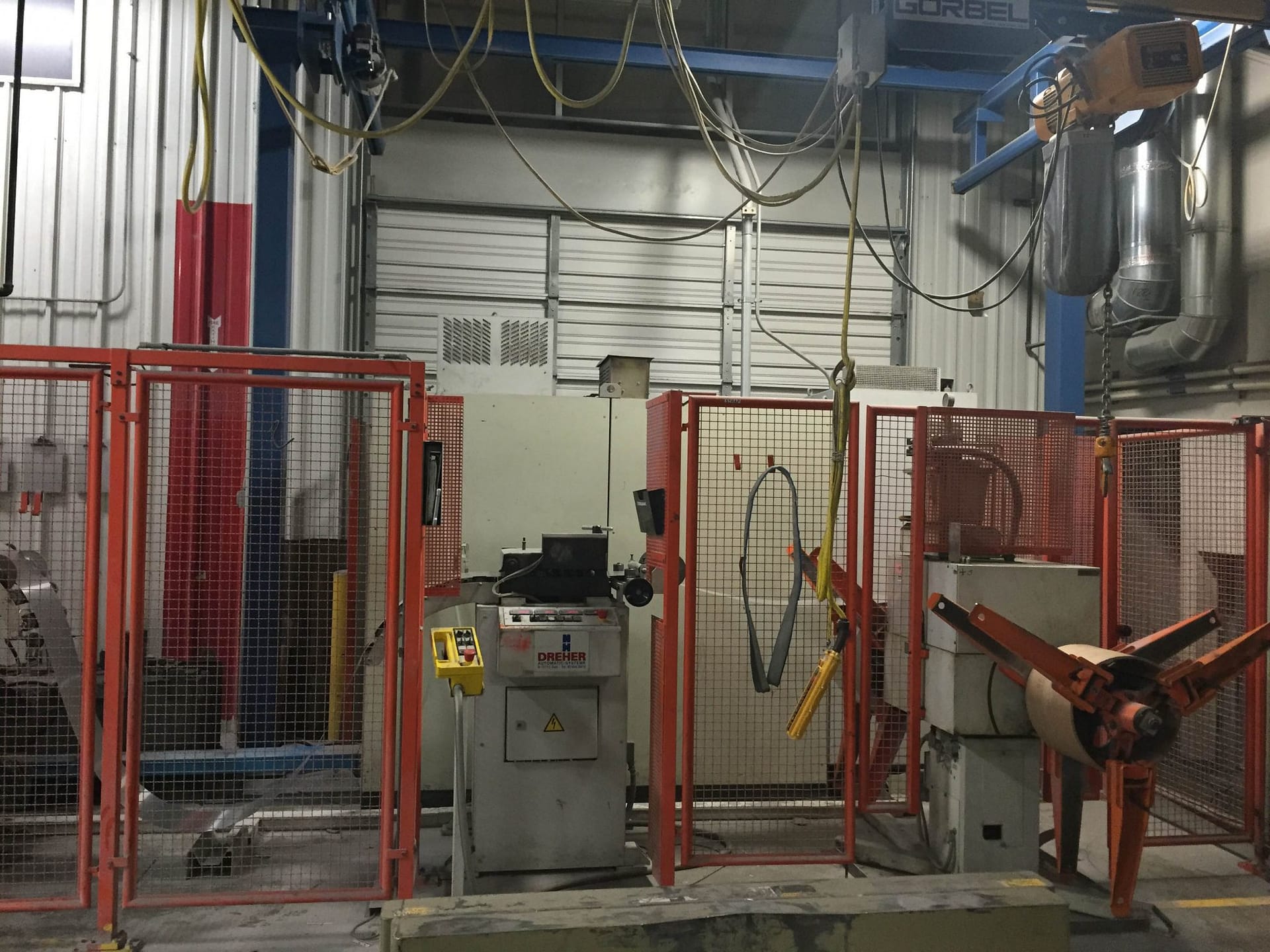

2003 Dreher precision high speed press line including:

  • Double Reel Dreher model 2352 B-FPS
  • Max coil weight 1250 Kg each side;
  • Max strip width 300 mm;
  •  Inner coil diameter 320-420 mm;
  • Outer coil diameter 1200-1300 mm

Straightener Dreher model SC12-FQ

  • Strip width 50 mm to 300 mm
  • Strip thickness 0.4 to 1.2 mm
  • 9 dressing rollers;  2 driven rollers; 2 drawing rollers
  • 0-12 m/min strip speed
  • 460V-60 Hz power
  • Feeder Dreher type WAV-MD-2Z Model 1082 U-B
  • 310 mm strip max
  • 3 mm max thickness
  • 104 m/min max speed
  • 1.5 kW drive
  •   460V-60 Hz
  • Has own PLC and control panel independent of press
  • Come with Raziol oiler
