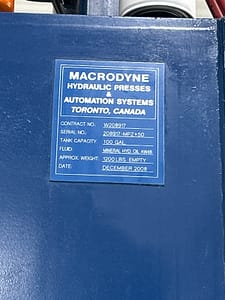

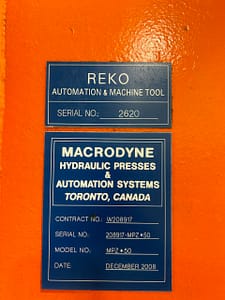

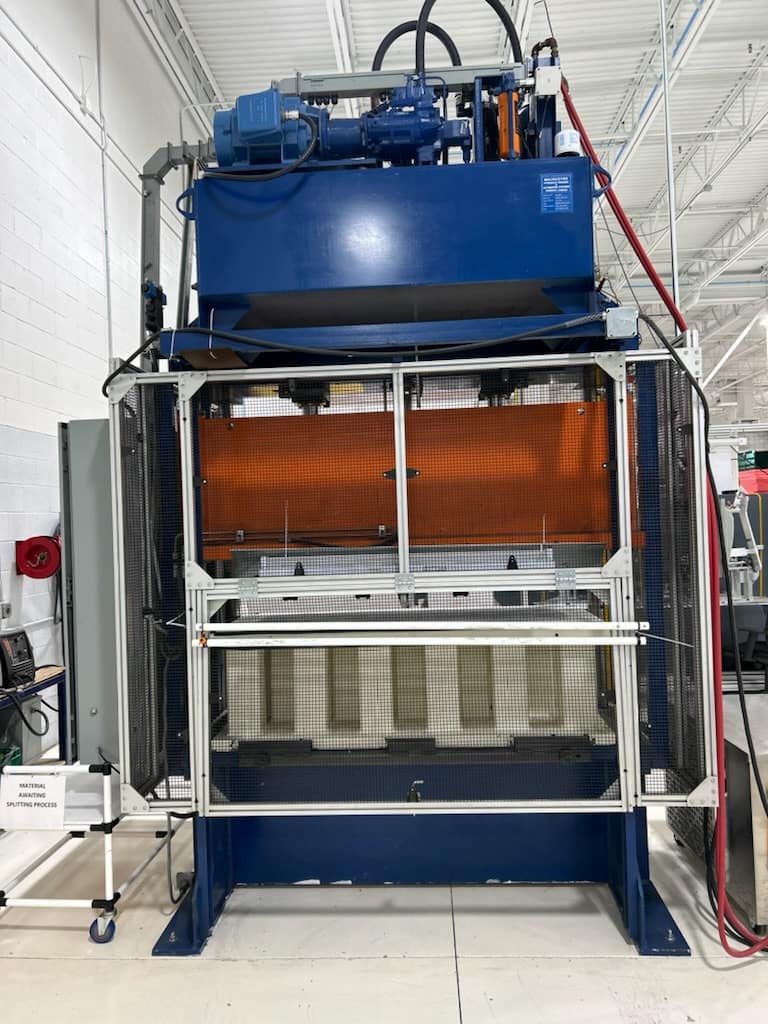

50 Ton Macrodyne Hydraulic Press
- Capacity: 50 Tons
- Year: 2008
- Max Return Force: 1.5 Tons

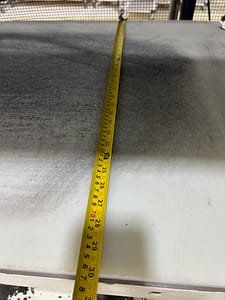

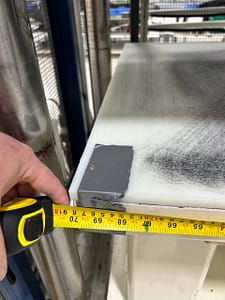

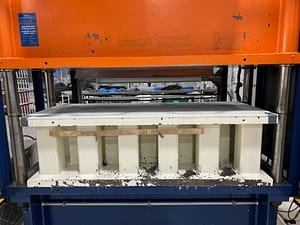

- Usable Bed Size: 72″ x 30″
- Usable Slide Size: 72″ x 30″
- Distance Between Columns: 72″ L to R
- Distance Between Columns: 22″ F to B

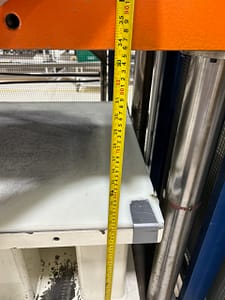

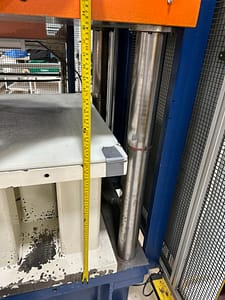

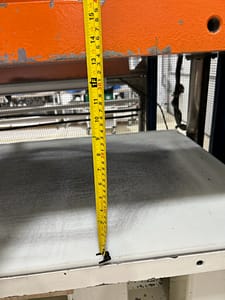

- Open Daylight: 36″
- Closed Daylight: 16″
- Stroke: 20″
- Width of Press: 80″ R to L
- Depth of Press: 36″
- Height of Press: 12′ 6″
- Floor to Bottom of Bolster: 28″
- Weight of Press: 15,000 lbs
- Approach Speed: 19.5″ @ 5.0″/sec
- Pressing Speed: 0.5″ @ 5.0″/sec
- Return Speed: 20.0″ @ 5.0″/sec
- Hydraulic Systems Operating Pressure: 2.600 psi
- Primary: 15 HP

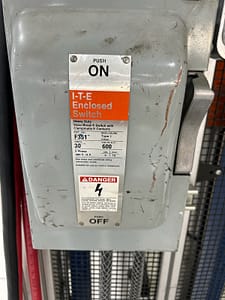

- Electrical Power: 480 Volts / 3-Phase / 60 Hz

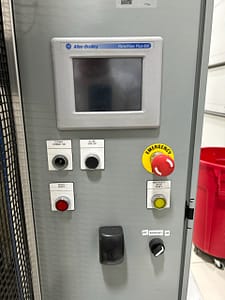

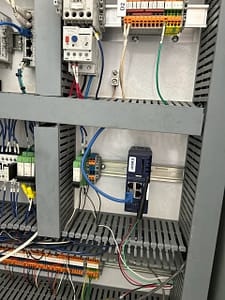

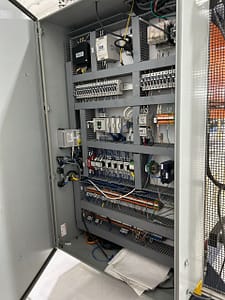

- Control Power: 24 VDC
