Chevalier FSG-3A818 Surface Grinder with DRO For Sale
MODEL: FSG-3A818 S/N: M3804001 Year: 1991 Note: The center hand wheel will need a handle, it got knocked off moving it. The two other hand wheels will need handles.
This came from Stryker, they manufacture medical equipment and take excellent care of their machines.
MAX. GRINDING CAPACITY ………………….. 8″ X 18″
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC …. 19- 3/4″
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ……. 21″
MAX. CROSSFEED TRAVEL, AUTOMATIC …………. 9″
MAX. CROSSFEED TRAVEL, MANUAL ……………. 9- 1/2 “
DIST. FROM SPINDLE CENTER TO TABLE ……….. 18 “
VARIABLE TABLE SPEED, HYDRAULIC ……… 16′ TO 82′ FPM
AUTOMATIC CROSSFEED INCREMENT ……….. 0.02″ TO 0.24″
RAPID TRAVEL, CROSS FEED …………………. 48″ IPM
CROSSFEED HANDWHEEL, PER GRADUATION ……….. 0.001″
PER REVOLUTION ……….. 0.2″
AUTOMATIC INCREMENTAL DOWNFEED ……… 0.0001″ TO .002″
AUTO DOWNFEED DIAL PER GRADUATION ……….. 0.0005″
PER REVOLUTION …………………………… 0.1″
RAPID TRAVERSE RATE ……………………. 13″ IPM
SPINDLE MOTOR ……………………………. 2 HP
STANDARD GRINDING WHEEL ………….. 8″ DIA. X 1/2″ X 1.25″
APPROX. WEIGHT ………………………… 2,620 LBS.
APPROX. FLOOR SPACE REQUIRED …….. 86″ X 61″ X 75″H
STANDARD MACHINE FEATURES FOR THIS MODEL:
FULLY PROGRAMMABLE AUTO-CYCLE CONTROL W/DIGITAL DISPLAY
-AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)
-SPARKOUT CYCLE ADJUSTABLE FRO 0 TO 9 TIMES
-AUTOMATIC WHEELHEAD RETRACTION @ COMPLETION OF CYCLE
-POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED BY AC MOTOR
TABLE GUIDEWAYS ARE HARDENED AND GROUND
BALL BEARINGS FOR FRICTIONLESS TABLE MOVEMENT
ALL SLIDEWAYS ARE LAMINATED WITH TURCITE-B & PRECISELY
HAND-SCRAPED FOR ACCURACY.
“MICRO” FINE FEED FOR VERTICAL AXIS (.0001″ GRAD.)

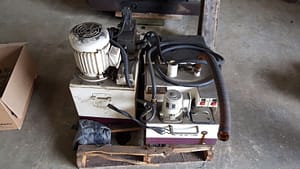

EXTERNAL HYDRAULIC SYSTEM
AUTO LUBE SYSTEM
2 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE
