Lagunmatic 310 CNC Mill

Lagunmatic 310 CNC Mill

  • With Dynapath Delta 10 CNC controls
  • Excellent condition
  • Mfg — 1990
  • Made in USA
  • 2,705 hours
  • 50″ x 10 ” table
  • X, Y travels — 27″, 14″
  • Knee travel — 16″
  • Quill travel — 6″
  • 7.5 hp spindle motor (230V, 3 phase)
  • Number 40 taper
  • Push-button power drawbar
  • Variable spindle speeds — 55 to 4250 rpm (2 ranges)
  • 4 3/8″ diameter hard-chromed quill
  • Custom-built anodized splash guard
  • Improved coolant system with large reservoir, manifolds for snap-lock nozzles
  • Tooling sub-plate with tapped hole grid for easy workpiece clamping and setup
  • Automatic spindle and way lubrication
  • Dynapath Delta 10 CNC control

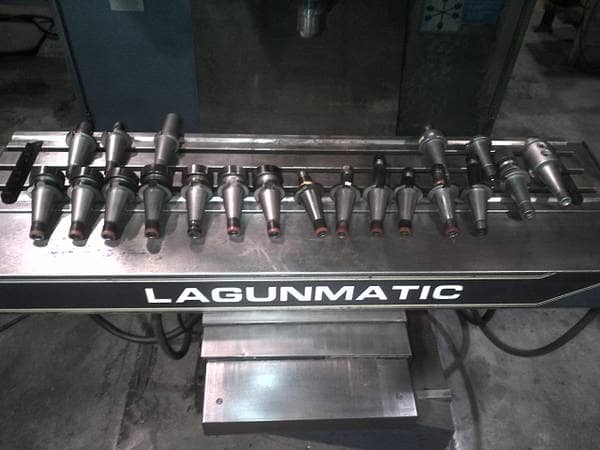

  • 40-taper tooling included, see pictures
  • Machine and tooling in excellent condition
  • Machine is under power for inspection
  • Covers removed for pictures and inspection, included in sale

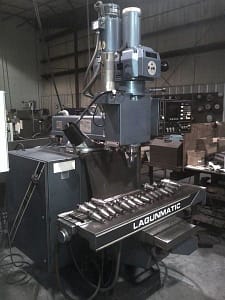

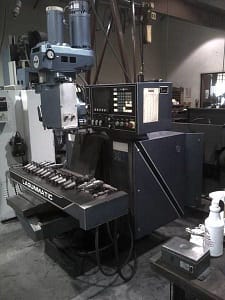

Lagunmatic 310 CNC Mill 1 Lagunmatic 310 CNC Mill 2 Lagunmatic 310 CNC Mill 3 Lagunmatic 310 CNC Mill 4 Lagunmatic 310 CNC Mill 5
