Monarch Metal Lathe – 72″ Between Centers

Monarch Metal Lathe – 72″ Between Centers

  • Tag reads:
  • Catalog size: 20″
  • Serial: 41551
  • Actual swing: 22.5″
  • Distance between centers: 72″
  • Year: 1956
We did a little looking and have found these specs from other sources for the Monarch lathe. ┬áThese specs are to the best of our knowledge……that being said, you will want to double check the info using the serial number or physical inspection.

Machine Details:

  • MODEL ………………………… 20CM
  • SWING OVER WAYS ……………….. 22-1/2″
  • DISTANCE BETWEEN CENTER ………… 72″
  • SWING OVER CROSS SLIDE …………. 13″
  • SPINDLE SPEEDS ………………… (12) 9 TO 400 RPM
  • FEEDS ………………………… (48) .005 TO .240 IPR
  • THREADS ………………………. (48) 3/4 TO 46 TPI
  • DIAMETER OF SPINDLE HOLE ……….. 2-1/4″”
  • TAPER ATTACHMENT ………………. YES
  • SWIVEL COMPOUND ……………….. YES
  • THREAD DIAL …………………… YES
  • HARDEN WAYS …………………… YES
  • SPINDLE FORWARD & REVERSE ………. YES
  • COOLANT WITH CHIP PANS …………. YES
  • MOTOR ………………………… 10 HORSEPOWER

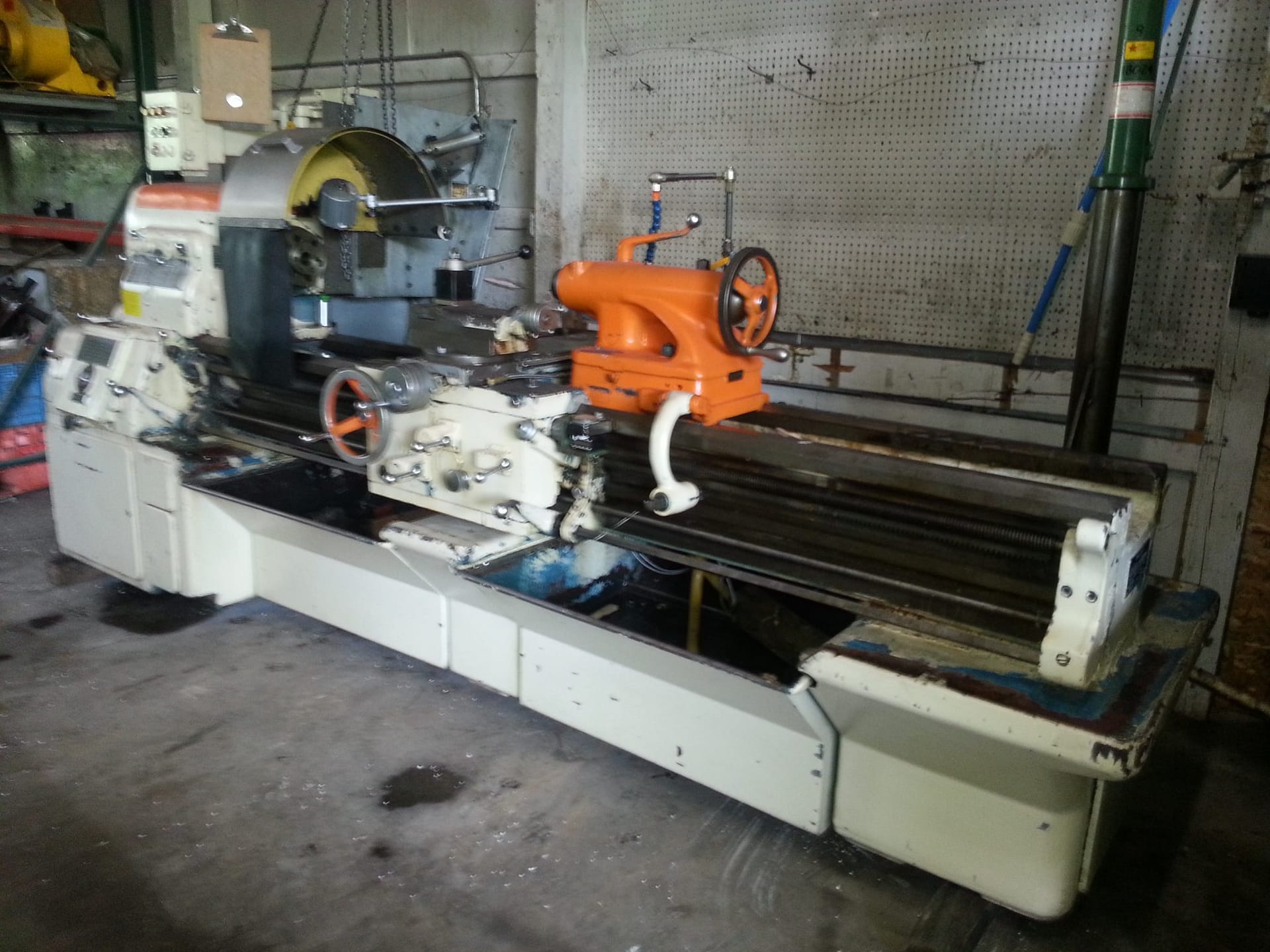

Monarch Metal Lathe 1 20140626_152932 20140626_152911 20140626_152853 20140626_152842Monarch Metal Lathe 2 Monarch Metal Lathe 3 Monarch Metal Lathe 4
