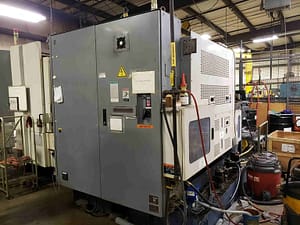

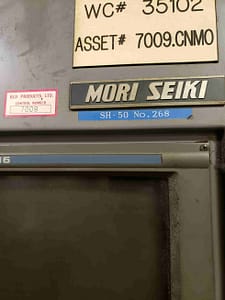

Mori Seiki SH50 Horizontal Mill For Sale

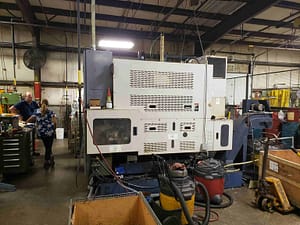

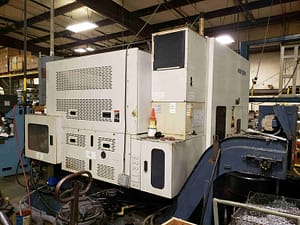

Mori Seiki SH50 Horizontal Mill

Features:

  • 12000 RPM Spindle

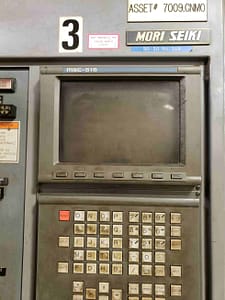

  • MSC-516 ( Fanuc ) Control
  • 1 Degree Index Dual Pallet Changer
  • 40 Tools Side Mount Tool Changer
  • Expanded Program Memory
  • Helical Interpolation
  • Rigid Tapping
  • Advanced Tool Management
  • Coolant Tank
  • Telescopic way covers
  • Chip Conveyor
  • RS-232
  • High Pressure Coolant system

Specifications:

Travels:

  • X-Axis: 24.8″
  • Y-Axis: 23.6″
  • Z-Axis: 25.6″
  • Rapid Traverse Rates: 1259 Inch Per Minute
  • Cutting Feed Rates: 710 Inch Per Minute
  • Table Surface to Spindle Center: 2.0″ – 25.6″

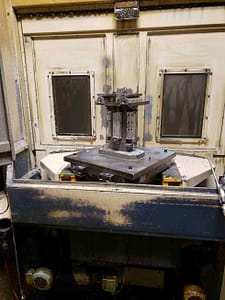

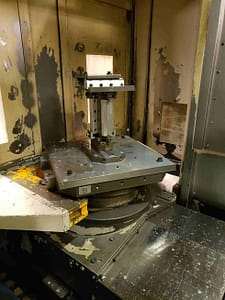

Pallet:

  • Dual Pallet Changer
  • Pallet Size: 19.75″ X 19.75″
  • Pallet Change Time: 6 Seconds
  • Weight on Table: 2200 lbs

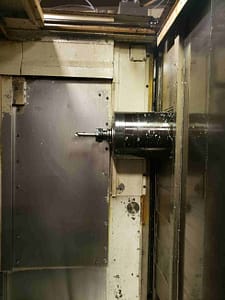

Spindle:

  • Taper Size: CAT 40
  • Speed Range: 0 – 12000 RPM
  • Spindle Power: 30 HP
  • Max Torque: 90ft-lb @ 2000RPM

Automatic Tool Changer:

  • Capacity: 40 + 1
  • Max Tool Weight: 22 lbs
  • Max Tool Dia: 6″
  • Max Tool Length: 16″
  • Tool Changing Time: 1.3 – 3.7 Seconds

General:

  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 3-Phase
  • Overall Shipping Dimensions: 178″ x 110″ x 130″ High
  • Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
  • Weight: 28,000 lbs
