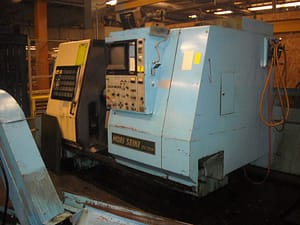

Mori Seiki ZL-25MC/500 Dual Turret CNC Lathe Turning Center

We bought this from a manufacture we work with regularly.  It was used in regular production, however the electronics will need to be serviced.  An electrical board in the cabinet broke off in shipping to our warehouse.  The specs below are to the best of my knowledge and you may want to double check them.

Mori Seiki CNC Lathe Turning Center – Dual Turret
Year 1988
Between Centers 19.6″
Swing over cross slide 13.8″
Spindle Speed 35-3,500RPM
Hole Through Spindle: 3.1″
Bar Capacity 2.5″
No. of Tools: Upper 12, Lower 8
Spindle: A2-6
Horsepower (30 Min.): 30HP
Dia. of Quill in Tailstock: 3.3″
Tailstock Quill Taper #3MT
Equiped with:
Fanuc CNC Control
12 Station Upper Turret
8 Station Lower Turret
Live Tailstock
Chip Conveyor

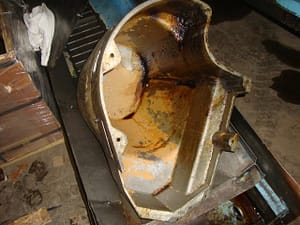

INCLUDES; 4 Live Tool Holders, Upper turret motor cover is included and shown in one of the pictures, we also had the back panel off for pictures, the back panel is included
DSCN3738 DSCN3739 DSCN3740 DSCN3741 DSCN3742       pic 1 pic 2 pic 3 pic 4 pic 5DSC05103 DSC05105 DSC05106 DSC05113 DSC05104
