Used Wasino A 12 CNC Lathe Turning Center Mill For Sale
DATE OF MANUFACTUREÂ 2000
- X AXIS TRAVEL 5.5″
- Y AXIS TRAVEL 3.9″
- Z AXIS TRAVEL 9.854″
- C AXIS MIN INCREMENT 0.001º
- RAPID TRAVERSE RATE X AXIS 630IPM
- RAPID TRAVERSE RATE Y AXIS 236IPM
- RAPID TRAVERSE RATE Z AXIS 787IPM
- SPINDLE NOSE / SPINDLE BORE A2-6/ 2.12″
- SPINDLE MOTOR 7.5HP
- SPINDLE SPEED 4,000RPM

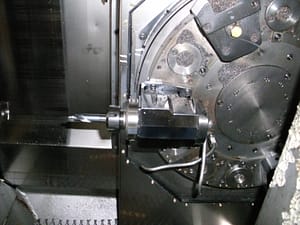

- TURRET CAPACITY (ALL LIVE CAPABLE) 12 STATIONS
- RADIAL TOOL MILLING SPEEDS 10000RPM
- AXIAL TOOL MILLING SPEEDS 5000RPM
- MILLING SPINDLE MOTOR 5HP
- ROBOTÂ LOADER SYSTEM
- IDEAL WORK DIAMETER 6.0″
- IDEAL WORK WEIGHT 6.6 LBS
- APPROX LOAD/UNLOAD TIME 6.0 SECONDS
- MACHINE WEIGHT (APPROX) 5500LBS
