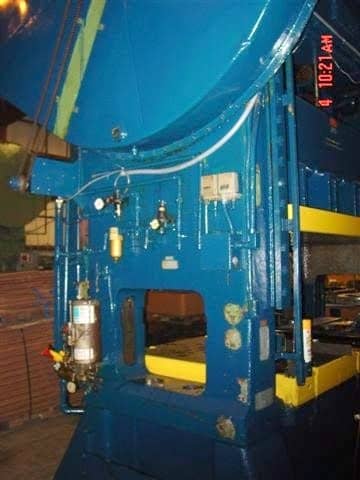

200 Ton Bliss Press – Straight Side Metal Stamping Punch Press For Sale

by



  • Bliss Straight Side Punch Press For Sale

  • Model S-200
  • Serial Number H55566 HP 43725 1966
  • Capacity 200 Ton
  • Bed 84″ L-R x 48″ F-B
  • 6″ Thick Bolster with drilled and tapped hole, no “T” slots
  • Ram size 84″ L-R x 48″ F-B Drilled and tapped ram
  • Stroke 14″
  • Speed 30 SPM
  • Adjustment 10″
  • Shut Height 12″ to 24″
  • Windows 24.5″ L-R x 19.5″ T-B
  • Overall Height 15′ to 16′ by 12′ L-R x 9′ F-B
  • Floor standing with 78″ F-B x 115″ L-R footprint
  • Equipped with Air clutch and brake, new Pressroom Commander control installed late 2009, 2 air cushions
