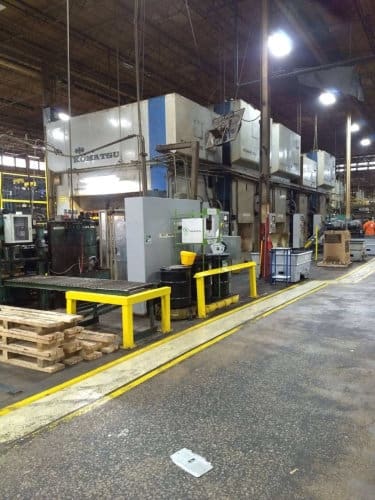

400 Metric Ton Press For Sale – Komatsu Press

400 Metric Ton Press For Sale – Komatsu Press 3 Available

  • Model: E2P-400
  • Year: 1985
  • Capacity 440 Short Ton – 400 Ton
  • Speed: 15 – 25 SPM
  • Stroke: 610mm 24″
  • Die Height Between Bolster and Slide Stroke Adj. Up: 840mm 33.1″
  • Slide Adjustment: 250mm 9.84″
  • Slide Dimensions: LR 3000mm x FB 1200mm OR LR 118.1″ x FB 47.24″
  • Bolster Dimensions: LR 3000mm x FB 1300mm x Thickness 190mm OR LR 118.1″ x FB 51.18″ x Thickness 7.48″

300 Metric Ton Press For Sale – Komatsu Press For Sale

300 Metric Ton Press For Sale – Komatsu Press For Sale – 2 Available

  • Model: E2P-300
  • Year: 1985
  • Capacity 330 Short Ton – 300 Ton
  • Speed: 15 – 25 SPM
  • Stroke: 450mm 17.7″
  • Die Height Between Bolster and Slide Stroke Adj. Up: 840mm 33.0″
  • Slide Adjustment: 350mm 13.8″
  • Slide Dimensions: LR 3000mm x FB 1200mm OR LR 118.1″ x FB 47.24″
  • Bolster Dimensions: LR 3000mm x FB 1300mm x Thickness 180mm OR LR 118.1″ x FB 51.18″ x Thickness 7.08″

500 Ton Press For Sale – Verson Straight Side Press

500 Ton Press For Sale – Verson Straight Side Press

Year 1995
Model L4-500-108-72T
Capacity 500 Tons
Bed and Slide Area 108″ x 72″
Stroke 24″
Slide Adjustment 27″
Shut Height to Bed 76″ ( 52″ over bolster plate )
Speed 6 to 20 SPM variable
Equipped with: Air Clutch and Brake, Air Counterbalances, Cushions

500 Ton Verson Press For Sale

500 Ton Verson Press For Sale

500 Ton Verson Press For Sale

500 Ton Verson Press For Sale

500 Ton Verson Press For Sale

1300 Ton Forging Press For Sale – Ajax Forging Press

1300 Ton Forging Press For Sale – Ajax Forging Press

  • 3 Available
  • 1433 US Ton Capacity
  • Years: 1986, 1987, 1996
  • Prices:
    • 1986: $225,000.00
    • 1987: $600,000.00
    • 1996: $750,000.00
  • Specs from Ajax Brochure:
  • Stroke: 10″ (250mm)
  • Ram Face L-R 31″ (780mm)
  • Ram Face F-B 31″ (780mm)
  • To Knockout Stroke: 1.25″ (32mm)
  • Ram To Table: 30″ (762mm)
  • Nominal Mechanical Stroke: 1.625″ (41mm)
  • Table To Floor: 30″ (750mm)
  • Die Seat: L-R: 32″ (820mm)
  • Die Seat: F-B: 33″ (850mm)
  • Width Between Columns L-R: 37.5″ (953mm)
  • Side Window Width: 22″ (558.8mm)
  • Floor Space L-R: 134″ (3404mm)
  • Floor Space F-B: 112″ (2845mm)
  • Height Above Floor: 192″ (4877mm)
  • Motor: 75hp (55.9kw)
  • Motor RPM: 900/1200
  • Gross Weight: 148,000lbs (67,273kg)
  • Air Consumption Per Stroke: .85 cu. ft. (.0241 cu. m.)

1300 Ton Ajax Forging Press For Sale

275 Ton Press For Sale – Aida Gap Frame Press

275 Ton Press For Sale – Aida Gap Frame Press

Model: NC2-250(2)
YOM: 1993
Total Capacity: 275 Tons
Bed Area: 106” x 36”
Slide Area: 83” x 28”
Stroke: 12” Die Height: 21.4”
Slide Adjustment: 3.5”
Motorized Speed: 20 – 35 SPM
Equipped with: Aida Coil Feed Line │ 6600# Capacity Coil X 24” Wide X .125” Thick


200 Ton Press For Sale – USI Clearing Straight-Side Press

200 Ton Press For Sale – USI Clearing Straight-Side Press

Model: S2-200-96-48  (New 1968)
S/N: 51-1343
Capacity: 200 Tons
Bed Area: 96”  X  48”
Slide Area: 96”  X  48”
Stroke: 12”
Shut Height: 28”
Slide Adjustment: 8”
Speed: 18-36 SPM Variable
Window Size: 32” X 30” High
Cushion Capacity: 53 Tons
Equipped with: Link Console Mounted Press Control, T-Slotted Slide and Bolster, Vibro Mounts
