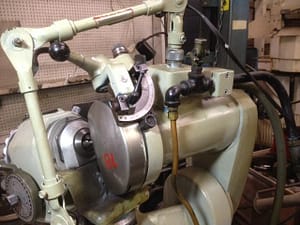

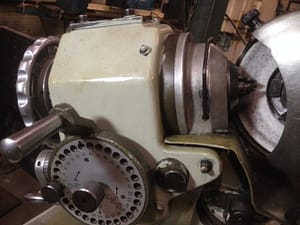

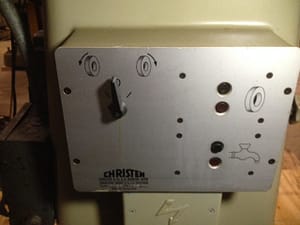

Christen Drill Grinder Model 2-32
High Precision Swiss Made Drill Grinder Sharpens Taps and End Mill Cutters Too
Year 1968
Serial Number 68 038

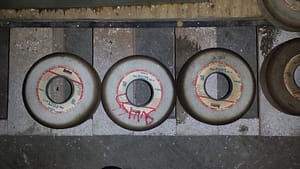

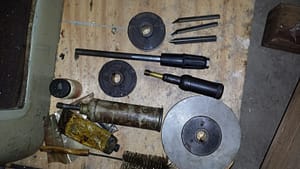

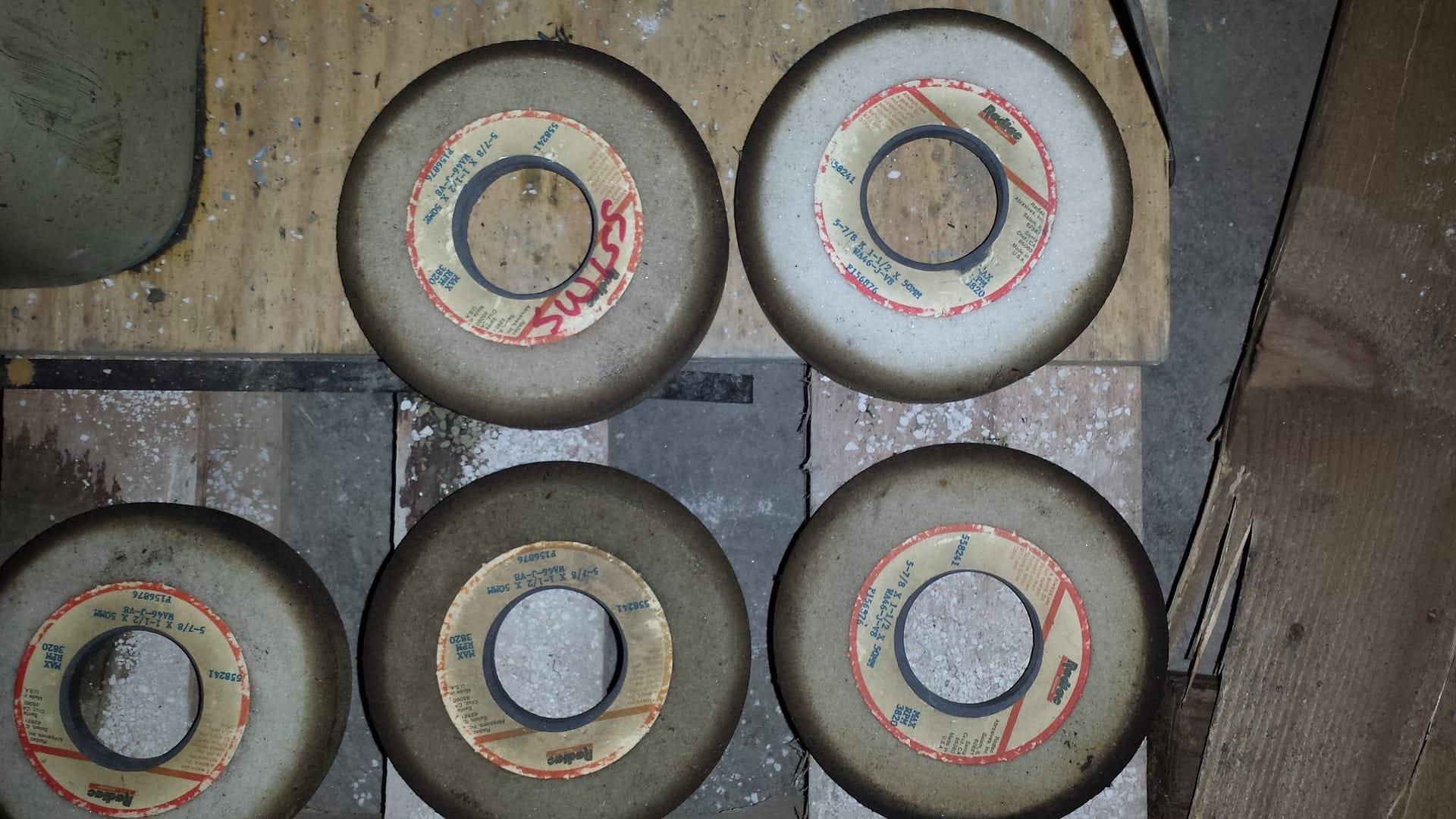

extra used grinding wheels included
The optics are there, but they will likely need to be gone through.
New cost for a base model of this machine is $40,000
These now made by a German company called SEBIT and are almost identical.
| Min. drill capacity | 2.0 | mm |
| Max. drill capacity | 32.0 | mm |
| Spitzwinkel min. | 60 | ° |
| max. | 180 | ° |
| Diameter of grinding wheel | 150 | mm |
| Width of the grinding wheel | 40 | mm |
| Drilling cap. of grind.wheel | 50 | mm |
| Grinding wheel speeds: | ||
| from | 2800 | rpm |
| Voltage 50 Hz 3x | 380 | Volt |
| Power | 1.00 | HP |
| Machine’s weight about | 450 | kg |
| Overall dimensions machine: | ||
| Length | 800 | mm |
| Width | 750 | mm |
| Height | 1300 | mm |
