Mazak Multiplex 410 – Twin Spindle Dual Turret – Several Available

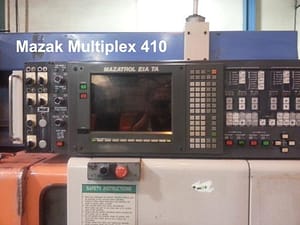

  • Control: Mazatrol EIA-TA
  • Chuck Size 6.5″ (2)
  • Max Diameter of Bar Capacity 1.65″
  • Distance Between Spindles 45.55″
  • Spindle Bore 2″
  • Spindle Nose A2-5
  • Rapid Traverse Rates 945IPM
  • X Axis Travel 7.87″
  • Z Axis Travel 14.37
  • Turret Index (single/full step) 0.4/1.2 Seconds
  • Maximum Swing: 13.78″
  • Turn Diameter: 9″
  • Machining Length: 15″
  • Bar Capacity: 1.65″
  • Spindle Speed: upto 3600 RPM
  • Main Motor: 15HP
  • Turret Position: (2) 12 Position
  • Machine Weight 15,400lbs
  • Several available, Years from 1991 to 1998
    • These are the specifications to the best of our knowledge. ┬áPlease research and check specifications to ensure vital details of the machine.

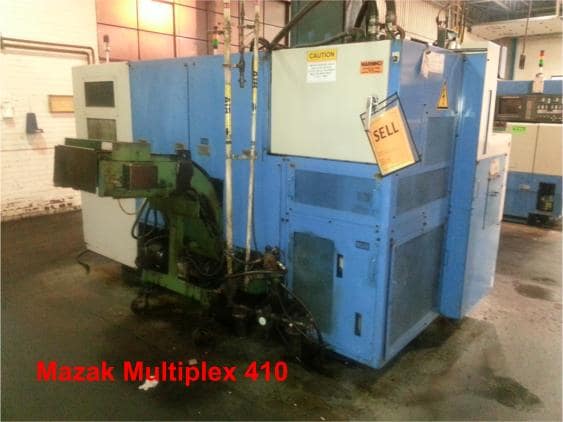

Mazak Multiplex 410 pic 17 Mazak Multiplex 410 pic 1 Mazak Multiplex 410 pic 2 Mazak Multiplex 410 pic 3 Mazak Multiplex 410 pic 4 Mazak Multiplex 410 pic 5 Mazak Multiplex 410 pic 6 Mazak Multiplex 410 pic 7 Mazak Multiplex 410 pic 8 Mazak Multiplex 410 pic 9 Mazak Multiplex 410 pic 10 Mazak Multiplex 410 pic 11 Mazak Multiplex 410 pic 12 Mazak Multiplex 410 pic 13 Mazak Multiplex 410 pic 14 Mazak Multiplex 410 pic 15 Mazak Multiplex 410 pic 16
