Mazak Multiplex 620 – 6 Axis Twin Spindle

  • Max Swing Over Bed 15.35″
  • Bar Capacity 2″
  • Turning Diameter 10.24″
  • Spindle Nose A2-6
  • Spindle Thru Hole 2.55″
  • X Axis Travel 9.05″
  • Z Axis Travel, Left/Right Turret 16.92″/19.09″
  • Turret Positions 12 x 2
  • Rapid Traverse Speed 944.88 IPM
  • Swing 12.8″
  • Distance Between Spindles 46.45″
  • Turrets (2) 12 Position w/live milling
  • Power 25hp
  • Speed up to 3600 RPM
  • Weight 18,920lbs
  • Control Mazatrol EIA-TA CNC
  • These are the specifications to the best of our knowledge. ┬áPlease research and check specifications to ensure vital details of the machine.

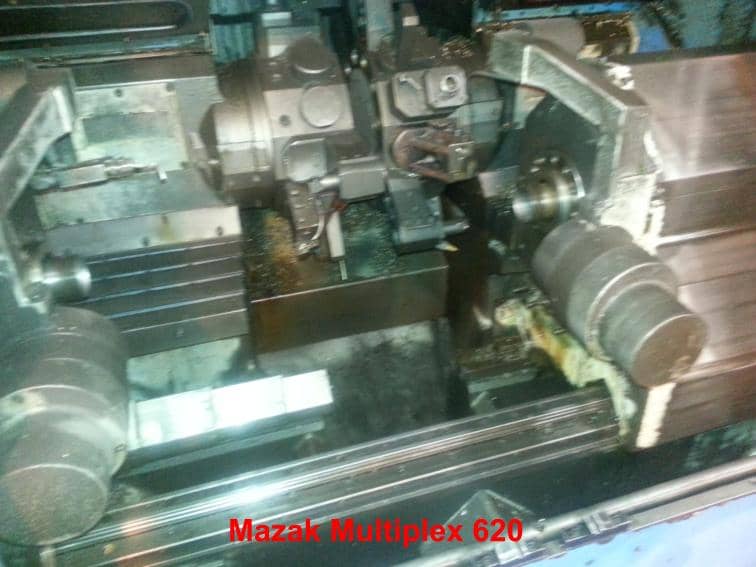

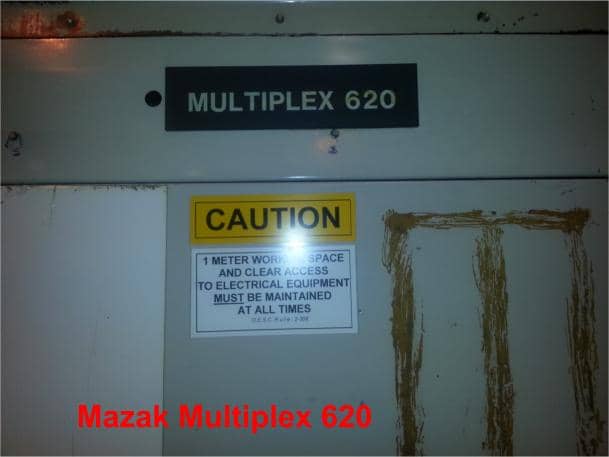

Mazak Multiplex 620 pic 01 Mazak Multiplex 620 pic 02 Mazak Multiplex 620 pic 03 Mazak Multiplex 620 pic 04 Mazak Multiplex 620 pic 05 Mazak Multiplex 620 pic 06 Mazak Multiplex 620 pic 07 Mazak Multiplex 620 pic 08 Mazak Multiplex 620 pic 09
