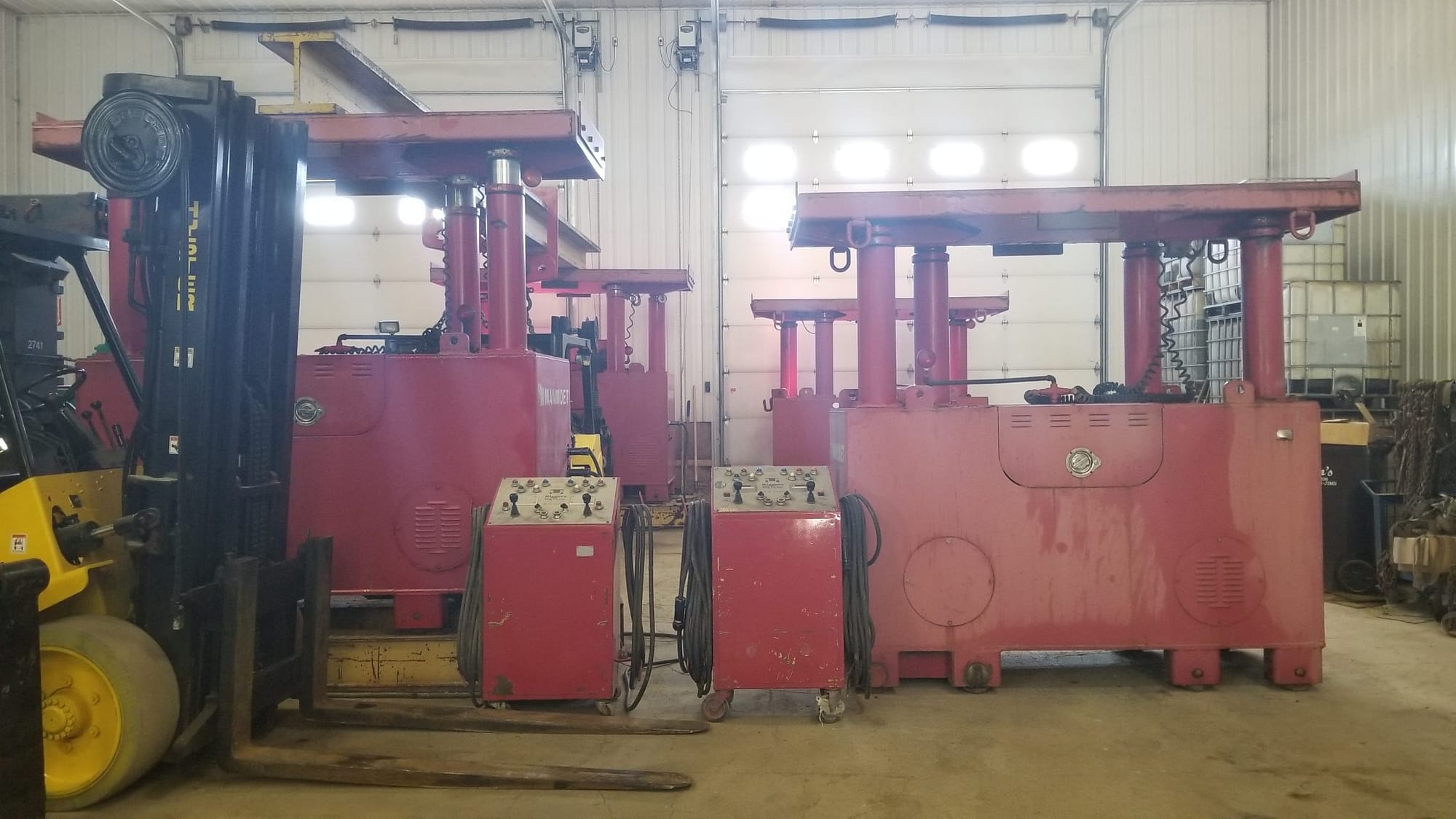

200 Ton Capacity Riggers Manufacturing Gantry For Sale

200 Ton Capacity Riggers Manufacturing Gantry For Sale – Used

(UPDATE – One 200 Ton Set Left – EZ200)

  • Capacity: 200 Tons
  • Model EZ200
  • Retracted Height: 8′ 6 1/2″
  • Extended Height: 20′
  • Unit is Self-Propelled
  • Weight of Each Leg: 11,000 lbs
  • Reservoir Capacity: 170 gallons
  • Operating Voltage: 440 Volts 3-Phase 30 AMPS
  • Cylinders: 2 Stage Telescopic
  • No Beams
  • No Runway

200 Ton EZ200 Riggers Gantry For Sale

400 Ton Capacity Riggers Manufacturing Gantry For Sale

400 Ton Capacity Riggers Manufacturing Gantry For Sale – Used

(UPDATE – One 200 Ton Set Left – EZ200)

  • Capacity: 400 Tons
  • Retracted Height: 8′ 6 1/2″
  • Extended Height: 20′
  • Unit is Self-Propelled
  • Weight of Each Leg: 11,000 lbs
  • Reservoir Capacity: 170 gallons
  • Operating Voltage: 440 Volts 3-Phase 30 AMPS
  • Cylinders: 2 Stage Telescopic
  • No Beams
  • No Runway

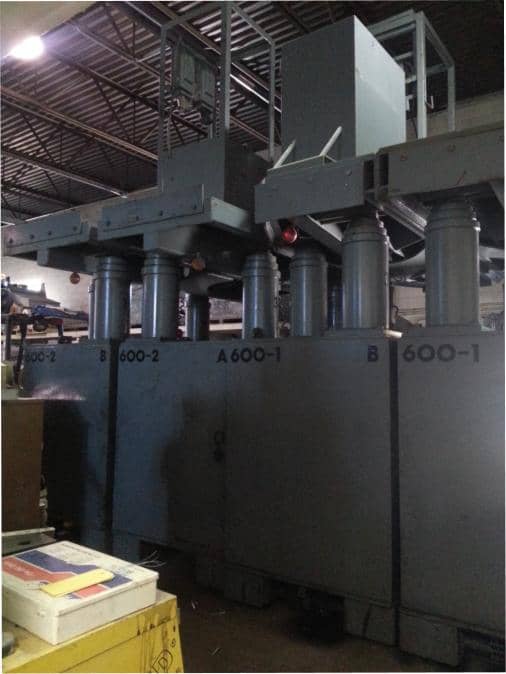

600 Ton Rigger Mfg EZ604 Hydraulic Gantry Crane System For Sale

600 Ton Rigger Mft EZ604 Hydraulic Gantry Crane System For Sale – Used

  • Model: EZ604
  • Make: E-Z Lifter
  • Control System: CARL
  • Year: 2002
  • Capacity 600 Tons @15′ 1.5″ — 225 Tons @ 33′ 0.05″
  • Legs: 4 Self-Propelled Continuous Travel
  • Reservoir Capacity: 330 gallons
  • Operating Voltage: 440v 60Hz or 380v 50Hz
  • Current Draw: One Leg 21 amps – Two Legs 42 amps
  • Cylinders: 4 Stage
  • Horsepower: 20hp
  • Weight Each: 26,500lbs

600 Ton EZ604 Riggers Hydraulic Gantry For Sale600 Ton EZ604 Riggers Hydraulic Gantry For Sale600 Ton EZ604 Riggers Hydraulic Gantry For Sale600 Ton EZ604 Riggers Hydraulic Gantry For Sale600 Ton EZ604 Riggers Hydraulic Gantry For Sale600 Ton EZ604 Riggers Hydraulic Gantry For Sale

From Riggers Mfg Brochure, actual item show in different image.

600 Ton EZ604 Riggers Hydraulic Gantry For Sale

600 Ton Riggers MFG Hydraulic EZ Lifter Gantry For Sale

600 Ton Riggers MFG EZ Lifter Hydaulic Gantry For Sale Used

Lift Capacity:    600 tons @ 15’4.5”  (625 tonnes @ 4.7 m) Extension
                       300 tons @ 28’4”   (272 tonnes @ 8.5 m) Full Extension


Total Weight (Each Leg): 22,500 pounds (10,206 kg) per leg
Reservoir Capacity: 330 gallons  (1,249 L)
Operating Voltage: 440v 60Hz  or 380v 50Hz
Current Draw: One Leg—21 Amps
                    Two Legs—42 Amps
Circuit Rating: 60 Amps
Horsepower: 15 hp
Cylinders: 3 Stage Telescopic

Retracted Height 9′ 4 1/2″
Extended Height 28′ 4″
 600 Ton Riggers Hydraulic Gantry System For Sale 600 Ton Riggers Hydraulic Gantry System For Sale


200 Ton Riggers Manufacturing Hydraulic Gantry For Sale

200 Ton Riggers Manufacturing Gantry For Sale

  • Model 200 EZ Lifter
  • Year 1987
  • Capacity 200 Tons
  • Retracted Height 8′ 6 1/2″
  • Extended Height 20′
  • Unit is self propelled
  • Weight of each leg 11,000 lbs
  • Reservoir Capacity 170 gallons
  • Operating Voltage 440 volts 3 Phase 30 AMPS
  • Cylinders 2 Stage Telescopic
  • Runway and Lifting Beams Available at additional cost



200 Ton Riggers Manufacturing Hydraulic Gantry For Sale

200 Ton Riggers Manufacturing Hydraulic Gantry For Sale

200 Ton Riggers Manufacturing Hydraulic Gantry For Sale

200 Ton Riggers Manufacturing Hydraulic Gantry For Sale

200 Ton Riggers Manufacturing Hydraulic Gantry For Sale

200 Ton Riggers Manufacturing Hydraulic Gantry For Sale

200 Ton Riggers Manufacturing Hydraulic Gantry For Sale

200 Ton Riggers Manufacturing Hydraulic Gantry For Sale

1000 Ton Riggers Manufacturing Gantry For Sale

(250 Ton x 4) 1,000 Ton Riggers Manufacturing Gantry
  • 4-Leg at 250 Ton Each
  • Two I-Beam
  • Two Back-Forth Move Cylinders
  • Two Control Consuls
  • 1 Box w/ Wires and Harnesses
