Danly 1600 Ton Straight-Side Press For Sale – Used

Danly 1600 Ton Straight-Side Press For Sale – Used

  • Model: S2-1600-144-60 QDC
  • Total Capacity: 1600 US Tons
  • Bed & Slide Area: 144” x 60”
  • Stroke: 30”
  • Shut Height: 80”
  • Adjustment: 18”
  • Speed: 8 – 16 SPM
  • Note: 66″ W x 63″ H windows

Danly 1600 Ton Straight-Side Press For Sale - UsedDanly 1600 Ton Straight-Side Press For Sale - Used Danly 1600 Ton Straight-Side Press For Sale - UsedDanly 1600 Ton Straight-Side Press For Sale - Used

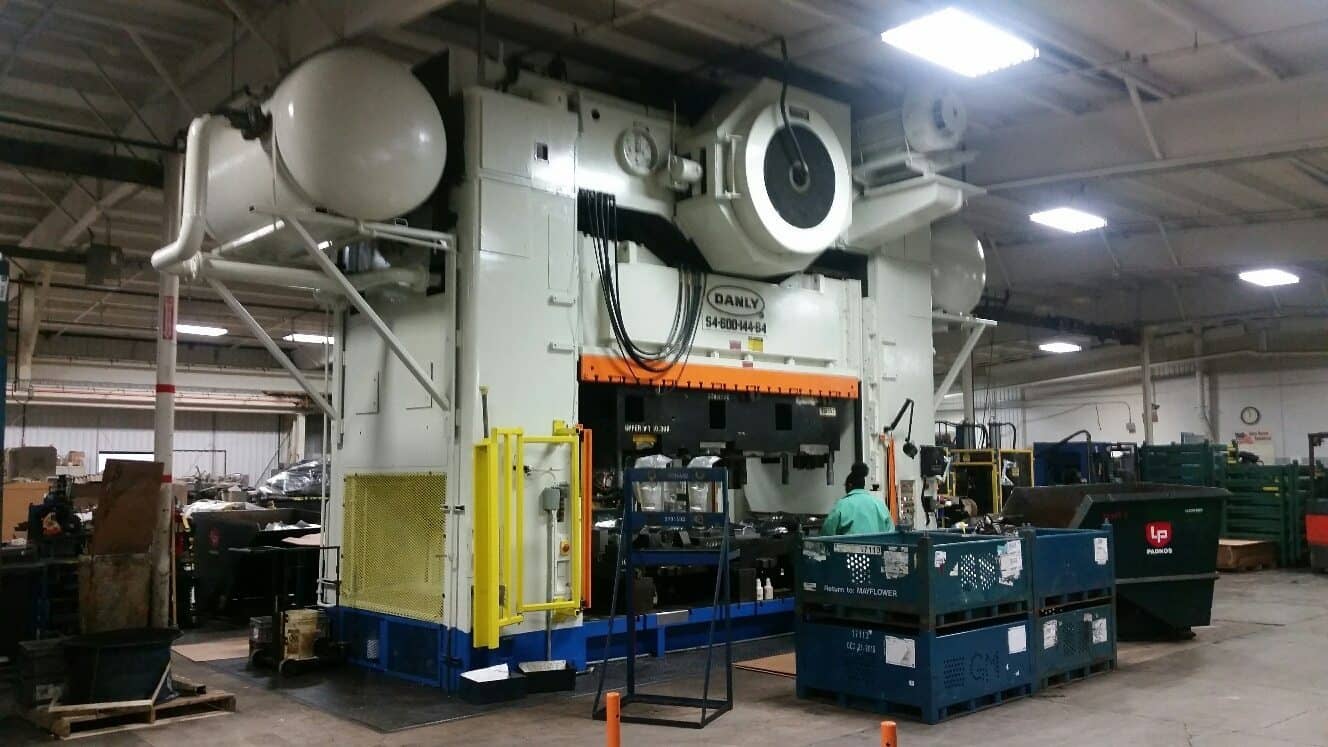

600 Ton Capacity Danly Straight Side Press For Sale

600 Ton Capacity Danly Straight Side Press – Used For Sale

  • Model: S4-600-144-84
  • Capacity: 600 Tons at 1/2″
  • Bed Area: 144″ x 84″
  • Slide Area: 144″ x 84″
  • Stroke: 30″
  • Slide Adjustment: 10″
  • Shut Height: 54″ to Bed
  • Bolster Thickness: 8 1/2″
  • Speed: 20 SPM
  • Motor: 100HP
  • Equipped With: Air Clutch and Brake, Air Counterbalances, Windows, I believe it is Floor Standing, in plant running, West Michigan

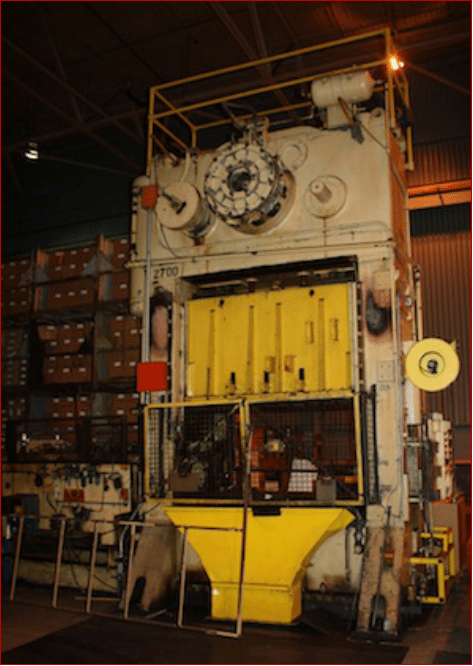

300 Ton Capacity Danly Straight Side Press For Sale

300 Ton Capacity Danly Straight Side Press For Sale – Used

  • Model: SS2-300-72-42
  • Serial #: 53065803
  • Capacity:  300
  • Bed Area:  72” x 42”
  • Stroke: 8”
  • Shut Height: 28.5”
  • Slide Adjustment: 6
  • Speed: 20-40 SPM
  • Bolster Thickness: 7”
  • Cushions: None

1,000 Ton Mecfond-Danly Straight Side Press For Sale

Mecfond-Danly Straight Side Press For Sale

Model S4-1000-4500-2200
Year 1980
Capacity 1,000 Tons
Bed Area 177″ x 86″
Stroke 33″
Slide Adjustment 13″
Shut Height  49″
Speed 8 to 25 SPM
Total Weight 230 Tons approximate
Windows 72″ Wide
Equipped with Front Moving Bolster
Used 1,000 Ton Mecfond-Danly Press For Sale Used 1,000 Ton Mecfond-Danly Press For Sale
1000 Ton Mecfond-Danly Straight Side Press For Sale
[video_traffic_x_video id=”179″]

1,000 Ton Danly Single-Action Press For Sale

1,000 Ton Danly Single-Action Press For Sale



  • Year: 1985
  • Model: SE4-1000-144-84
  • Capacity: 1,000 Tons
  • Bed Area: 144″ x 84″
  • Slide Area: 144″ x 84″
  • Stroke: 36″
  • Shut Height: 76″
  • Slide Adjustment: 6″
  • Speed: 8-20 SPM (Variable)
  • Equipped With: Dual-side moving bolsters, full tonnage micro inch drive

1,200 Ton Danly Straight Side Press For Sale

1,200 Ton Danly Straight Side Press For Sale

  • Tonnage: 1,200
  • Model: E4-1200-66-108
  • Ram Size: 66″/108″
  • Ram T-Slot: Yes
  • Bolster T-Slot: No
  • SPM: 12
  • Shut Height: N/A
  • Ram Adj: 10″
  • Stroke Length: 10″
  • Cushion: Yes (2)
  • Cushion Stroke: 12″
  • Cushion Tonnage: 160
  • Note: Ram leveling issue

500 Ton Danly Straight Side Press For Sale

500 Ton Danly Straight Side Press For Sale

  • Model: S4-500-2500-1400
  • New In: 1981
  • Capacity: 500 Tons
  • Bed Area: 2500mm X 1400mm
  • Slide Area: 2500mm X 1400mm
  • Stroke: 350mm
  • Shut Height: 1750mm (to bed)
  • Adjustment: 300mm
  • Speed: 20-75 SPM (variable)
  • Equipped with: Windows
  •  Bolster approx 900mm high

500 Ton Danly Straight Side 1 500 Ton Danly Straight Side 2 500 Ton Danly Straight Side 3
