330 Ton Capacity Niagara Straight Side Press For Sale

330 Ton Capacity Niagara Straight Side Press

  • Model: SC2-300-120-60
  • Capacity: 330 Tons
  • Bed Area: 120″ LR x 60″ FB
  • Slide Area: 120″ LR x 60″ FB
  • Stroke: 12″
  • Adjustment: 12″
  • Shut Height: 30″ (over bed)
  • Speed: 30-60 SPM
  • Note:
    • Window Opening: 32″ W x 20″ H
    • Total Weight: 117,500 lbs (approx.)
    • Overall Height: 207″ (above floor)
    • Bolster Thickness: 7.5″

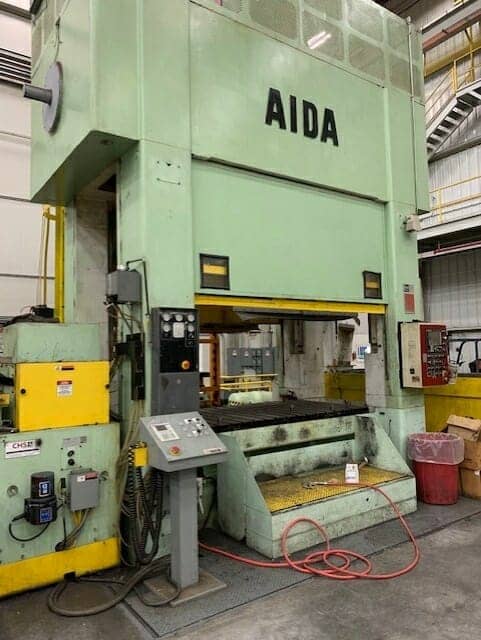

440 Ton Capacity Aida Straight Side Link Motion Press For Sale

440 Ton Aida Straight Side Link Motion Metal Stamping Press

  • Capacity: 440 US Tons (400 KN) at 0.25″
  • Model: PMX-L2-4000(1)-225-160
  • Year: 2002
  • Stroke: 12″
  • Slide Adjustment: 6″
  • Speed: 25 to 60 SPM
  • Micro Inching: 10 SPM
  • Shut Height: 43″
  • Bed Area: 108.26″ x 55″
  • Slide Area: 108.26″ x 55″
  • Bolster Thickness: 10.62″
  • Overall Height: 257.87″
  • Window Size: 53.53″ Wide
  • Total Weight: 97 Tons



400 Ton Capacity Heim Straight Side Press For Sale

400 Ton Capacity Heim Straight Side Press

  • Model: S2-400-100-48
  • Stroke: 12″
  • Shut Height: 12″
  • Slide Adjustment: 12″
  • Speed: 20 – 40 SPM (Variable)
  • Bed Area: 100″ x 48″
  • Ram Area: 100″ x 48″
  • Includes:
    • T-Slotted Bolster (Approx. 6″ Thick)
    • Windows in Uprights
    • Tie Rod Construction
    • Fabricated Steel Frame
    • Air Clutch & Brake
    • Air Counter Balances
    • Hydraulic Overload Protection
    • Light Curtains
    • Imco Tonnage Motor
    • Motor & Controls

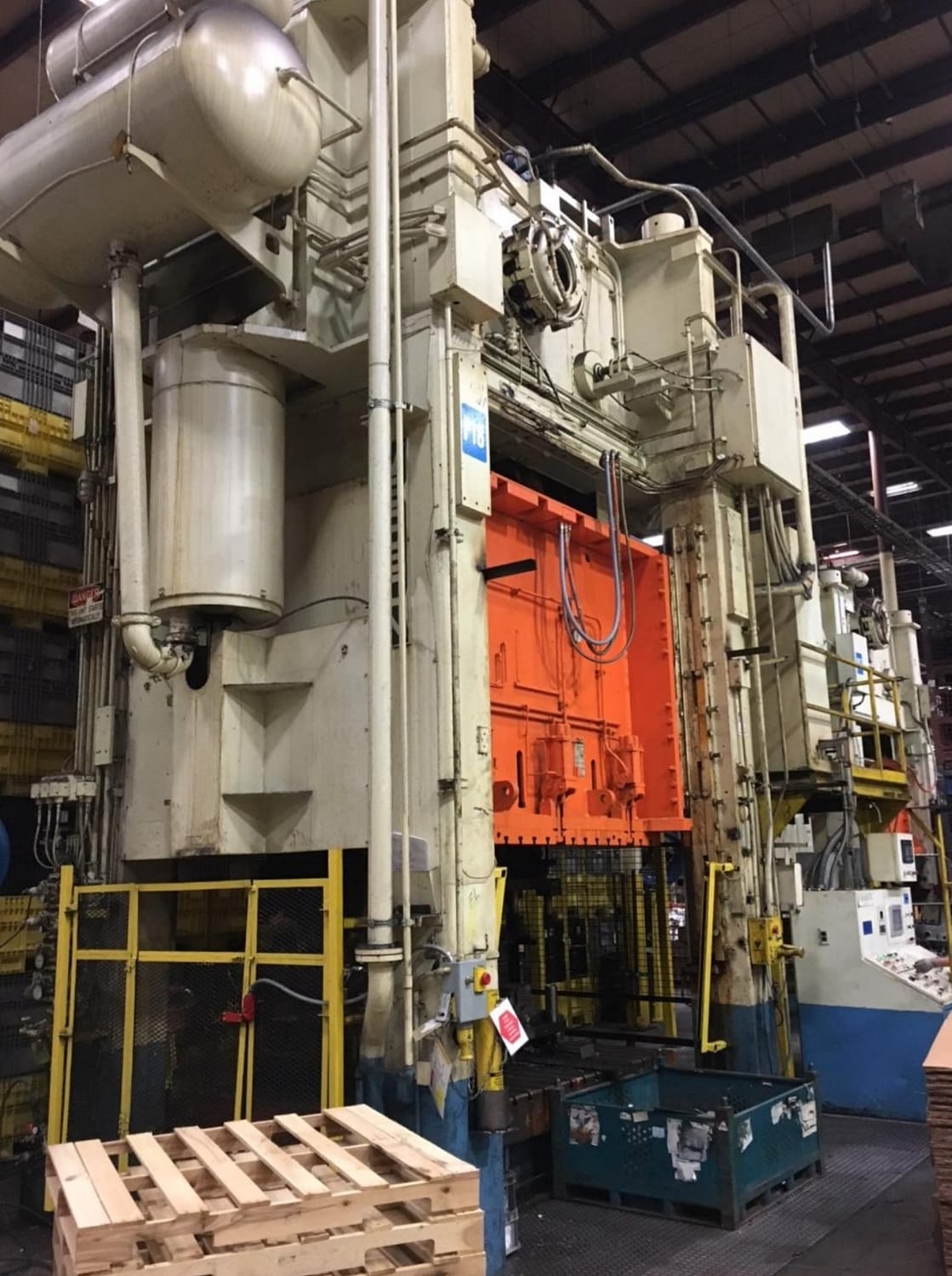

500 Ton Verson Straight Side Press For Sale

500 Ton Verson Straight Side Press For Sale – Used

Year 1995
Model L4-500-108-72T
Capacity 500 Tons
Bed and Slide Area 108″ x 72″
Stroke 24″
Slide Adjustment 27″
Shut Height to Bed 76″ ( 52″ over bolster plate )
Speed 6 to 20 SPM variable
Equipped with: Air Clutch and Brake, Air Counterbalances, Cushions

500 Ton Verson Press For Sale

500 Ton Verson Press For Sale

500 Ton Verson Press For Sale

500 Ton Verson Press For Sale

500 Ton Verson Press For Sale

275 Ton Aida Gap Frame Press For Sale

275 Ton Gap Frame Press For Sale – Used

Model: NC2-250(2)
YOM: 1993
Total Capacity: 275 Tons
Bed Area: 106” x 36”
Slide Area: 83” x 28”
Stroke: 12” Die Height: 21.4”
Slide Adjustment: 3.5”
Motorized Speed: 20 – 35 SPM
Equipped with: Aida Coil Feed Line │ 6600# Capacity Coil X 24” Wide X .125” Thick


​300 Ton Capacity Minster Straight Side Press For Sale

300 Ton Capacity Minster Straight Side Press For Sale – Used

  • Model: S2-300-96-48
  • Capacity: 300 Tons
  • Bed Area: 96″ x 48″
  • Stroke: 14″
  • Ram Adjustment: 14″
  • Shut Height: 33″
  • Speed: 36 SPM
  • Equipped With:
    • Windows: 20″ W
    • Press Controls
    • T-Slotted Bolster
    • Ram
    • Floor Standing
    • Air Cushions
